PHD3020 FINCM Steel Structure fabrication CNC Precision Drilling Machining

Product Description

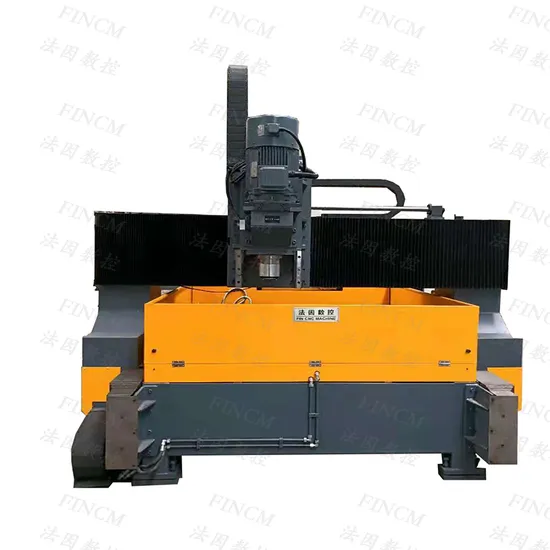

CNC Steel Structure Construction Gantry Movable Steel Plate High Speed Drilling Machines 3000mm*2000mm*100mm
Product Description
Product Parameters

Specification name	Items	Specification valve
Workpiece dimension	Material overlapping thickness	Max. 100mm
	Width×length	3000mm×2000mm one piece
		2000mm×1000mm two pieces
		1000mm×1000mm four pieces
Spindle	Spindle boring	BT50
	drill diameter	Max. Φ50mm
	rotate speed	0-2000r/min
	travel length	350mm
	process feeding	Servo motor driven
Workpiece clamp	clamp thickness	15-100mm
	clamp cylinder number	12
	Clamp force	7.5kN
	Clamp start	Foot switch
Cooling liquid	Recycle design	Forced circulation
	Cooling mode	Spray cooling
Hydraulic	Clamp pressure	6MPa(60kgf/cm2)
	capacity of tank	About 100L
Air pressure	Air source	0.4MPa(4kgf/cm2)
Motor	Spindle	15kW
	Feeding	2.0kW
	Hydraulic pump	2.2kW
	Cooling pump	0.25kW
	X axle servo system	2.0kW
	Y axle servo system	1.5kW
	Chip conveyor	0.75kW
Machine dimension	L×W×H	About 5500×3550×2900mm
	Weight	About 7000kg
Control axle number	X,Y(Point control),Z(servo feeding)
Travel range	X axle	2000mm
	Y axle	2000mm
	Z axle	350mm

List of Free Accessories to be shipped together with the machine:

NO	Code	Name	Quantity	Remark
1	BT50-40	hilt	1
2	BT50-I	Pull nail	1
3		"O"ring 16×2.4mm	5 pcs
4		"O"ring 11×1.9mm	5 pcs
5		"O"ring 50×3.1mm	1 piece

Key Outsourced Components List:

NO.	Name	Brand	Country
1	Linear guide rail	PMI/HIWIN	Taiwan (China)
2	Hydraulic pump	JustMark	Taiwan (China)
3	Electromagnetic valve	Atos/Yuken	Italy/Japan
4	Servo motor	Inovance	China
5	Servo driver	Inovance	China
6	PLC	Inovance	China
7	Computer	Lenovo	China

Applicable Industry
This machine purpose is mainly used for drilling plate workpieces in steel structures such as construction, coaxial, iron tower, etc., and can also be used for drilling tube plates, baffles and circular flanges in boilers, petrochemical industries.
