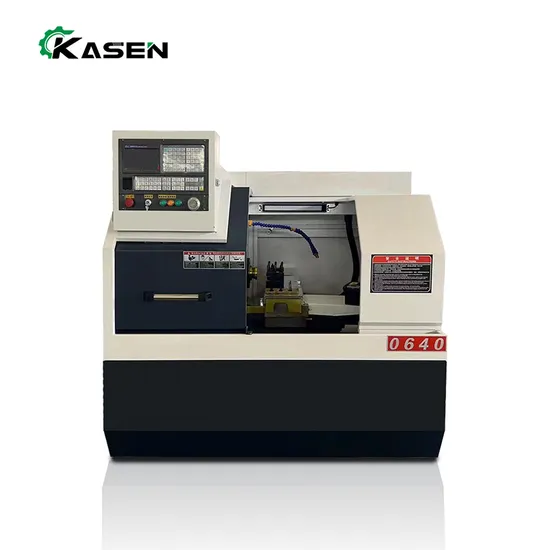

Hot-Selling Economical CNC Lathe Ck0640 Flat Bed Lathe

Product Description

CK0640 Small Metal CNC Lathe Automatic Chuck Lathe Center
Product Description

Product Parameters:
This kind of CNC machine tools CK0640 turning machine cnc lathe frame hobby mini lathe using mechanical and electrical integration design. Beautiful appearance, reasonablel structure, wide range of uses, easy to operate. The machine can be automatically controlled,l capable of automatically processing a variety of parts inside and outside the circle, face, grooving,any conical, spherical, and a variety of British-made cylindrical, tapered thread. And with a perfect S.T.M function, can send and receive a variety of signals to control the automatic processing.The main car using high-precision mobile bearing support, high precision rotary. The CKo640 turning machine cnc lathe frame hobby mini lathe guide rail with high wear-resistant cast ironl and by the ultrasound quenching, and artificial aging treatment, to ensure long-term stabilityl of machine geometry accuracy. Vertical and horizontal carriage using high-precision balll screw drive,dynamic performance, high displacement accuracy. All sliding surfaces of thel machine adopt concentrated drip lubrication. CKo640 turning machine cnc lathe frame hobbyl mini lathe is widely used in electrical appliances, hardware tools. Valves, gas pipe fittings and other complex parts of the manufacturing process, is the metal machining industry ideal high-efficiency equipment.

Model			CK0640	CK0660
Drawn pipe diameter	mm		42	60
Max. swing diameter over slide	mm		130	100
Max. workpiece length	mm		Collet 200	Collet 200
			chuck 120	chuck 120
Spindle head form			A2-5	A2-5
Spindle bore	mm		48	68
Max. rotation diameter over bed	mm		250	250
Lathe bed width	mm		260	260
X/Z repeat positioning accuracy	mm		0.012/0.013	0.012/0.013
X/Z maximum stroke	mm		260/240	260/240
X/Z fast-moving feed	mm/min		4000/8000	4000/8000
Spindle speed range	r/min		150-2500	150-2500
Main motor power	kw		3	3
Machine size (LxWxH)	mm		1600x1000x1550	1600x1000x1600
Net weight	kg		950	1000
