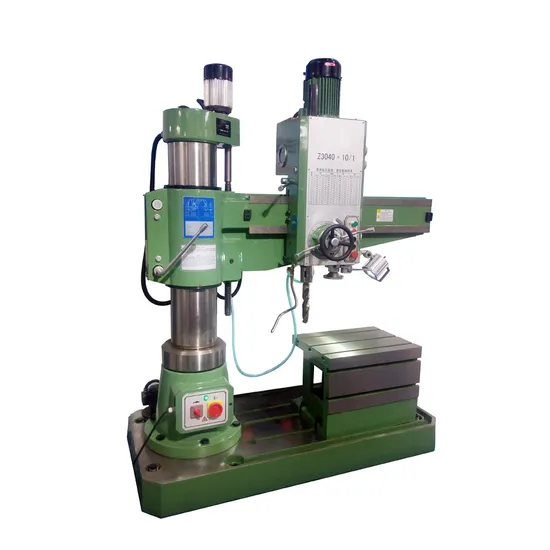

Radial Drilling and Mill Equipment Machine with CE Approved /1 Z3040X10/1 Z3040X13/1
| US$5,000.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3040X10/1
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Manual
Number of Shaft
Manual
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Spindle Bore Taper
Mt4
Spindel Travel
280mm
Drill Capacity
32mm
Motor Power
2.2kw
Transport Package
Plywood Case
Specification
Cast Iron
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
845929000
Production Capacity
300
Product Description
RADIAL DRILLING MACHINE FEATURES:
Inner-outer column.
Mechanical clamping for the column and mechanical Speed Changing.
Spindle with auto-feeding.
coolant, work light, available.
Spindle Box machined by machining center.
SPECIFICATION:
| SPECIFICATION | Z3032X10/1 Z3040X10/1 | Z3040X13/1 | |||
| Max. drilling capacity | mm | 32/40 | 40 | ||
| distance spindle axis to column generating line | mm | 300-1000 | 300-1300 | ||
| diameter of column | mm | 240 | 300 | ||
| Spindle taper | MT4 | MT4 | |||
| Spindle travel | mm | 280 | 280 | ||
| Spindle speeds range | r/min | 32-2500 | 32-2500 | ||
| Spindle speeds series | 16 | 16 | |||
| Range of spindle feeds | mm/r | 0.10-1.25 | 0.10-1.25 | ||
| Spindle feeds | 8 | 8 | |||
| Distance spindle nose to working surface of base | mm | 220-1000 | 300-1320 | ||
| Dimension of worktable | mm | 600*450*450 | 600*450*450 | ||
| Dimension of base | mm | 1710*800*160 | 2050*900*200 | ||
| Overall size | Mm | 1760*800*2050 | 2100*900*2300 | ||
| Power of main motor | Kw | 2.2 | 3 | ||
| G.W/ N.W | kg | 1920/1830 | 2500/2100 | ||
| Packing dimension | cm | 187*97*220 | 235*106*245 | ||
| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES | ||||
| Box shape worktable Taper Sleeve Tool releasing wrench Drift Eyelet bolts | Quick change chuck Tapping Chuck Grease Gun | ||||
