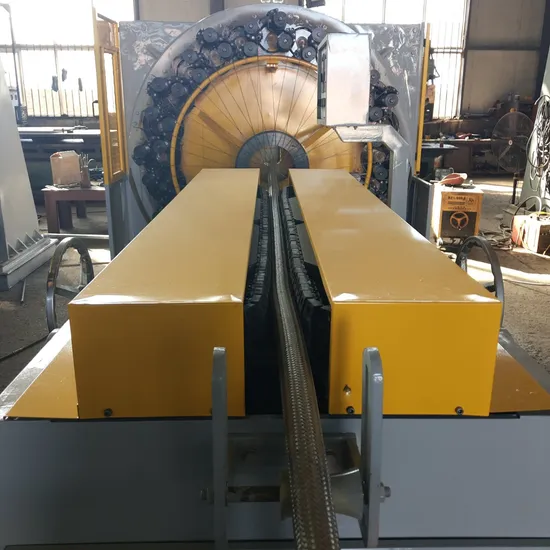

48 Carrier Wire Braider Machine China Best Quality
| US$15,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Comflex
Customized
Customized
Theory
Inverter
Application
Industry
Type
Stainless Steel Pipe Mill Line
Structure
Horizontal
Automatic Grade
Automatic
Warranty
1 Year
Carrier Rotation Speed (R/Min)
4.56r/Min
Braiding Angle
54, 44"
Product Name
48-Carrier Wire Braiding Machine
No of Carrier
48-Carrier
Model
Gbg-48
ID of The Braids
4mm-600mm
Wire Diameter
0.3-0.8mm
Transport Package
Standard Seaworthy Package
Specification
ISO9001
Trademark
Comflex
Origin
Jiangsu, China
HS Code
844790900
Production Capacity
5000sets Per Year
Product Description
48-carrier wire braiding machineProduct description of wire braiding machine
* Braiding ID/OD of the hose: 30-75mm
* Rotation speed of the carrier:7.25r/min.
* Braiding angle:54°44″
* Pitch distance:66-166mm
* Pulling speed:29-72m/h
* No.of carriers:48 carriers
* Motor power:Y132M1-6 7.5KW
Machine description
Wire braiding machine
The wire braiding machines we can make as follows:
Wire diameter:0.3mm to 0.8mm
No.of spindles:16 to 112 spindle braiding machine
ID of the braids:4mm to 600mm
Material of wires:stainless steel,galvanized carbon steel, copper wire
Technical data
Single decker steel wire braiding technical data
| Description | Braiding diameter(mm) | Carrier Rotation Speed (r/min) | Carrier Rotation Speed (r/min) | Braiding Pitch (mm) | Pulling Speed M/H | No.carrier | Motor Power KW |
| GBG16-carrier wire braiding machine | 4-10 | 24.8 | 54°44" | 9-22 | 13-33 | 16 | Y100L1-4 2.2KW Y100L2-4 3.0KW |
| GBG20-carrier wire braiding machine | 6-16 | 19.8 | 54°44" | 13-29 | 15-34.5 | 20 | Y100L1-4 2.2KW Y100L2-4 3.0KW |
| GBG24-carrier wire braiding machine | 10--31 | 14.25 | 54°44" | 22-69 | 21-66 | 24 | Y100L1-4 2.2KW Y100L2-4 3.0KW |
| GBG36-carrier wire braiding machine | 15--45 | 10 | 54°44" | 33-100 | 22-66 | 36 | Y100L2-4 3.0KW Y100L2-4 3.0KW |
| GBG48-carrier wire braiding machine | 30--75 | 7.25 | 54°44" | 66-166 | 29-72 | 48 | Y132M2-6 5.5KW Y112M-4 4.0KW |
| GBG64-carrier wire braiding machine | 51-110 | 4.56 | 54°44" | 67-240 | 18.6-102 | 64 | Y160M-6 7.5KW Y112M-4 4.0KW |
| GBG72-carrier wire braiding machine | 80-150 | 4.25 | 54°44" | 170-330 | 44-83 | 72 | Y160M-6 7.5KW Y112M-4 4.0KW |
| GBG96-carrier wire braiding machine | 150-300 | 2.75 | 54°44" | 240-750 | 50-120 | 96 | Y180L-6 15KW Y160M-6 7.5KW |
| GBG112-carrier wire braiding machine | 115-400 | 2.778 | 54°44" | 310-800 | 42-130 | 112 | Y132M1-6 4.0KW Y180L-6 15KW |
| GBG128-carrier wire braiding machine | 200-400 | 2.088 | 54°44" | 500-1300 | 72-300 | 128 | Y132S-4 5.5KW Y180L-6 15KW |
Double decker steel wire braiding technical data
| Description | Braiding Diameter (mm) | Carrier Rotation Speed (r/min) | Braiding angle | Braiding Pitch (mm) | Pulling Speed M/H | Carrier NO. | Motor Power KW |
| GBG-2S16 | 4-10 | 24.8 | 54°44" | 9-22 | 13-33 | 32 | Y100L1-4 2.2KW Y100L2-4 3.0KW |
| GBG-2S20 | 6-16 | 19.8 | 54°44" | 13-29 | 15-34.5 | 40 | Y100L1-4 2.2KW Y100L2-4 3.0KW |
| GBG-2S24 | 10--31 | 14.25 | 54°44" | 22-69 | 21-66 | 48 | Y100L1-4 2.2KW Y100L2-4 3.0KW |
| GBG-2S36 | 15--45 | 10 | 54°44" | 33-100 | 22-66 | 72 | Y100L2-4 3.0KW Y100L2-4 3.0KW |
Product showing
128-carrier single decker wire braiding machine
96-carrier single decker wire braiding machine
24-carrier double decker steel wire braiding machine
Customer visiting&training
96 carrier wire braiding machine
Workshop Show
FAQ for steel wire braiding machine
1. Why choose us as your supplier?
We are most professional in steel wire braiding machine with more than 30 years of experience
2. What wires can you machine braid?
A. Stainless steel wire
B. Copper lad steel wire
C. Copper wire
3. What application of your braiding machine?
Popular for both rubber hose and metal hose manufacturing
We need to know the following information to quote you correct machineries:
1. What outer diameter of the hose you want to braid?
2. Structure of the braid?
3. How many carriers/bobbins you need for braiding your hose? For instance, 24, 36,64,72,96,128 carrier, etc..
