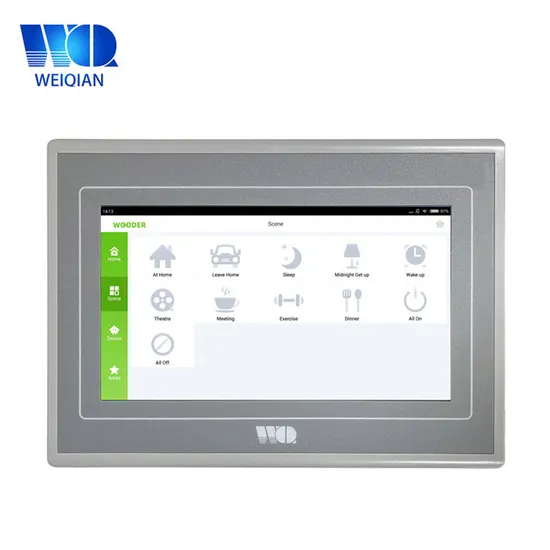

All-Winner A133 Android Industrial Panel PC Capacitive Touch Screen Industrial PC Fanless HMI IP65 7inch Panel

Product Description

Embedded Touchscreen Monitor 7" 8" 10" 10.4" 12" 14" 15" 17" 19" 22" Inch Open Frame Lcd Computer Touch Screen Monitor

1. Parameter

Product model	WAR-070C(R)-QP00/WAR-070C(R)-QP10
Basic Parameters	CPU:Quad-core Cortex-A53; Frequency 1.5GHz GPU: IMG PowerVR GE8300 Memory:1GB LPDDR4 (2G as option ) EMMC:8GB(16G as option)
Display screen	Size:7 inch Resolution:1024 x600 Wide-temperature type,610k colors or 24-bit true colors LED backlight:lifetime>25000 hours
Touch screen	Resistive/Capacitive touch screen
Hardware interface	2 channel 3-wire RS-232 serial port (COM1,COM5). 2 channel RS-485 interface (COM2,COM3) (optional). 1 channel USB Device interface,support ADB connect to PC to exchange data and debug application. 1 channel USB Host interface,support usual USB device such as mouse,keyboard,U dish,etc. 1 channel 100M Ethernet interface. 1 channel DC12V~24VPower Input interface. Optional- WIFI,4G module (2 CHOOSE 1).
OS	Android10
Defend degree	IP65 (front panel)
Working environment	Power:12V ~24V DC/2A Working temperature:-10~60ºC Storage temperature:-20~70ºC Working humidity:10~90%RH
Size	Shell structure:plastic Panel size:203.00x149.00(mm)
Application area	Industrial control, detection device, instruments ans meters, security monitoring, medical apparatus and instruments, intelligent terminalsembedded high-end application.
Software support	Support Eclipse,Android Studio,Visual Studio 2015/2017 development,support JAVA/C/C++/C#, etc. Easy change the user-defined splash screen.

2.Interface definiton
2.1 RS-232 interface
2 channels,support the highest-level baudrate 115200bps. The corresponding interface in Android system is COM1,COM5.
2.2 RS-485 interface
The corresponding port in Android system is RS-485COM2,COM3.
3.Exterior size
Exterior size:203x149x38.1 (mm) Trepanning size: 191 x 137 (mm)

Company Profile
FAQ Q: What kind of all-in-one industrial panel pc do you manufacture? A: Windows CE / Android / Linux Industrial Panel PC based on ARM Architecture ;Windows 7 /Windows 10 based on X86 Architecture since 2005 .Q: What is the main size for your panel pc and industrial monitor? A: 4.3" / 5"/ 7"/ 8"/10.1"/10.2"/ 10.4"/11.6"/12"/13.3"/15"/15.6"/17"/19"/21.5"/32" and wide screen the same zise. We also support the customized.Q: Does this industrial panel pc support secondary development? A: Weiqian's industrial panel pc can support secondary development.Q: What industry is your industrial panel pc applied in? A: Medical Equipment,Electric Power Equipment, Intelligent Parking ,Industrial Automation Production, Environmental Monitoring System, Smart Factory, Smart Warehouse, Smart Buildings, Smart Transportation, Smart Farming, Computer Room Monitoring system, instruments and meters, security monitoring, intelligent terminals embedded high-end application, etc.Q: Can we printing our logo on the Plastic case or Metal case ? What is MOQ ? A: Yes,we can do the silk-printing or UV printing LOGO in the case. MOQ is 200pcs.Q: Whether your industrial panel pc support the OEM / ODM? A: Weiqian 's industrial panel PC support the customization with size, function, appearance, resolution, high brightness ,boot interface and etc.Q: What kind of inspection you can provide? A: Weiqian has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all signage players are in perfect condition before shipment.Q: What is your warranty period? A: 1 Year warranty period & Lifetime technical support.
