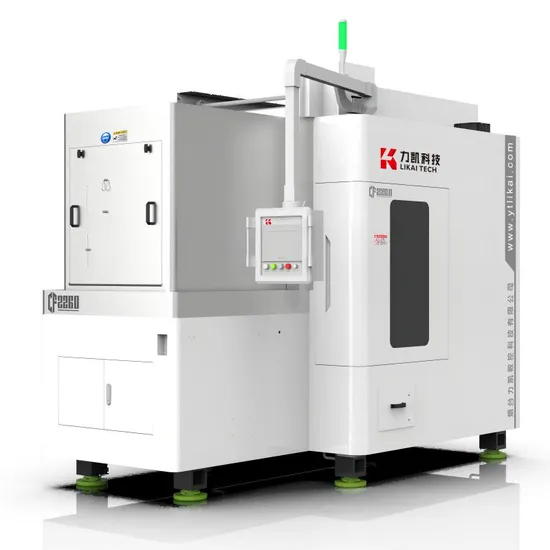

CF2260 Diamond Multi-Wire Sawing Machine for Magnets Quartz Crystal Cutting Tool
| US$48,000.00-200,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
CF2260
Condition
New
Certification
CE, ISO 9001: 2015
Automation
Automatic
Suitable for
Alloy, Sapphire, Quartz Crystal, Silicon, Magnets
Maximum Worksize
220X600X180mm
Workbench Quantity
1
Roller out Diameter
180X180X610mm
Roller Quantity
3
Wire Diameter
0.12-0.25mm
Wire Spool Storage
40km
Maximum Running Speed
1500m/Min
Travel of Table
255mm
Cutting Method
Water-Based Cutting Fluid or Cutting Oil
Fluid Storage
800L
Fluid Flow Rate
200L/Min
Air Supply
More Than 0.4MPa
Dimension
3400X2200X2700mm
Weight
7500kg
Test Cut
Provide Test Cut Service
Transport Package
Wooden Case
Specification
White
Trademark
LiKai
Origin
China
HS Code
8464109000
Production Capacity
350sets/Year
Product Description
Product DescriptionCF2260 Multi-wire Saw
CF2260 Multi-wire Saw is a straight cutting equipment integrating the characteristics of previous mature models and is designed based on improving production efficiency and stability. The equipment is suitable for straight slicing of Rare Earth Permanent Magnet, Quartz Crystal, Optical Glass, Precious Metal and other hard and brittle materials. It is suitable for the cutting of products within 0.5-15mm thickness. It has the characteristics of high processing efficiency, strong running stability and wide process applicability.
Product Features
>Stable Wire Web Control
The rollers and wire spools adopt cone-positioned structure with high accuracy and high rigidity to control wire web shaking.
>Optimized Pulley System
8 pulleys design can reduce diamond wire torsion, tension fluctuation and wire breakage rate.
>Easy Wire Winding
The wire pay-off wheel adopts the standard universal spool (PV600 reinforced I-wheel), and it's no need to rewind.
>Safety Guarantee
The main operation door can be raised and lowered electrically with safety device.
>Wire break memory system.
>Easy Operation
The cutting room is open on 3 sides for easier operation and maintenance.
Product Parameters
| Detail | Parameter |
| Model | CF2260 |
| Maximum work size | 220mm×600mm×180mm |
| Roller out diameter *Workable width | (φ180mm±10)x610mmx3 |
| Wire Diameter | φ0.12mm-φ0.25mm |
| Wire spool storage | 40km(φ0.25mm) |
| Maximum running speed | Max1500m/min |
| Travel of table | Max255mm |
| Cutting method | Vertically upward movement |
| Cutting feed speed | 0.1-99.9mm/min |
| Cutting Fluid | Water-based cutting fluid or cutting oil |
| Fluid Storage | 800L |
| Fluid flow rate | 200L/min |
| Power supply | Three-phase 380V 50Hz |
| Power | 40kw |
| Air supply | More than 0.4MPa |
| Size L*W*H | 3400mm*2200mm*2700mm |
| Weight | 7500Kg |
