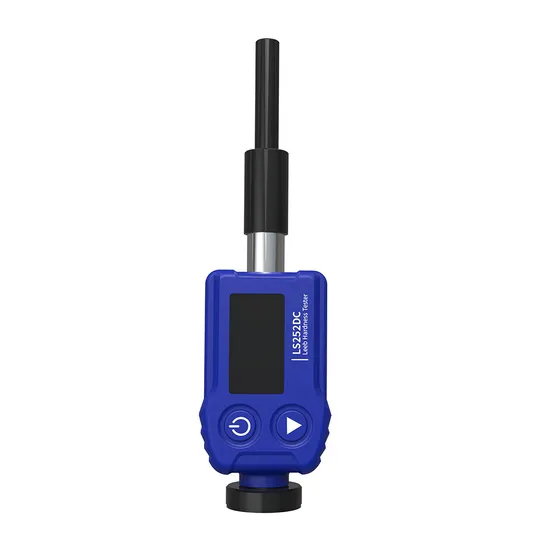

Ls252DC 7-in-1 Pocket Pipe Superficial Surface Leeb Hardness Tester Meter Hardness Scales Hl, Hv, Hb, HS, Hra, Hrb, HRC

Product Description

Product Parameters LS252DC 7-in-1 Pocket Pipe Superficial Surface Leeb Hardness Tester meter Hardness Scales HL, HV, HB, HS, HRA, HRB, HRC Description: LS252DC lipstick-sized Leeb hardness tester utilizes a DC-type impact device, which makes it shorter. The durometer hardness tester uses dual-coil technology which makes the tester to have extraordinary accuracy: ±6HL and good repeatability: 6HL. The portable digital durometer adopts orientation sensors that will compensate the measurement errors in different impact directions automatically to ensure the accurate data, with OLED display screen. Equipped with impact device DC, LS252DC hardness tester is suitable for very confined spaces such as holes, cylinders or for internal measurements on assembled machines.
Features:
1. DC impact device for measuring confined spaces such as holes, cylinders.
2. Compact size and flexible application with integrated design.
3. The leeb hardness tester uses dual-coil technology which makes extraordinary accuracy: ±6HL and good repeatability: 6HL.
4. The durometer adopts orientation sensors that will compensate the measurement errors in different impact directions.
5. Switch of multiple hardness scales, eliminating the cumbersome steps of manual table lookup.
6. It is equipped with USB interface, universal type-C cable can be connected to the power supply.
7. Elimination of errors by self-calibrating standard hardness blocks. Specifications

Parameter	Value
Probe	Impact device DC
Hardness Scales	HL, HV, HB, HS, HRA, HRB, HRC
Measurement Range	HLD: (170-960); HV(83-976); HB(30-651); HRC(17.6-68.5); HS(26.4-99.5); HRB(13.5-100); HRA(60-85.8)
Resolution	1HL
Accuracy	±12 HL, ±6 HL typical
Repeatability	6HL
Display	128 * 64 dot matrix OLED
Power Supply	Rechargeable lithium battery 3.7V@250mAh, full charge for over 5000 continuous measurements
Charging Port	USB(Type-C)
Size	88 * 34 * 24 mm
Weight	48g
Working Temperature Range	-10~50ºC,0~85%RH(no condensation)
Storage Temperature Range	-10~60ºC,0~85%RH(no condensation)

Product Description Packing List

No.	Description	Quantity	Unit
1	Leeb Hardness Tester	1	Set
2	Nylon Brush	1	Pcs
3	Small support ring	1	Pcs
4	USB Data Cable	1	Pcs
5	User Manual	1	Pcs
6	Certificate / Warranty card	1	Pcs
7	Push Rod	1	Pcs

Company Profile
Packaging & Shipping

Packing	Air Carton /Express Packaging/ Shrink Package
Delivery Terms	EXW, DAP, Express Delivery
Delivery Time	5-10 days in stock
Port	Shenzhen

FAQ Q: What's the difference between LS251D hardness tester digital and LS252D Leeb hardness tester? A: LS251D is separation design, LS252D as integrate design, more compact portable; LS251D can measure tensile strength (σb); LS251D has QC inspection; LS251D is equipped with standard hardness blocks, which can be used for calibration; other integrated models are not equipped and need to be purchased separately; LS251D is packed in engineering plastic box, and other integrated products are packed in color gift box Q: What's the difference between LS252D and LS252DC? A: The probe devices are different. LS252D metal durometer is a D-type impact device and LS252DC digital durometer is a DC type impact device. The loading modes are different. LS252D pen type portable leeb hardness tester is press loading and LS252DC is push loading. Q: What is the difference between a type D impact device and a type DC impact device? There are D /C /DC /D+15 /G type impact devices, according to the actual situation of the workpiece to meet different needs. D is a standard probe suitable for most scenes, DC type is suitable for very cramped places (inside the hole, cylinder) measurement. Q: How to place order?
