19mm 640X512 in Car & Vehicle Front Camera Intelligent Thermal Imaging Cameras
| Negotiable | 2 Pieces (MOQ) |
Basic Info.
Model NO.
CQ-VI61C19
Type
Car Camera
Sensor
CMOS
HDMI Format
1080P
Horizontal Resolution
540tvl
Kind
Manual Focus Lens
Certification
CE, FCC
Feature
Waterproof / Weatherproof, High Definition, Mini Size
Effective Distance
≧30m
Sensor Size
1/3 inch
Remote Control
With Remote Control
Pixel
640X512
Focal Length
19mm
Ai
Support
Image Output
Gmsl, PAL
Protection
IP52
Transport Package
Export Standard
Trademark
CQ or customized
Origin
Zhejiang
Production Capacity
300 Sets / Month
Product Description

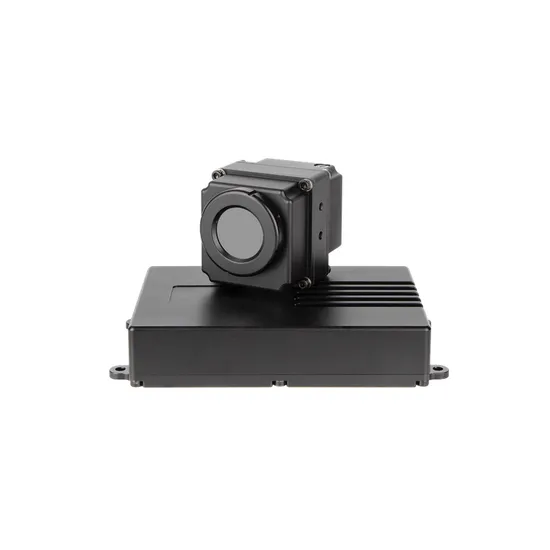

640x512 19mm Intelligent In-car thermal imaging camera systemIn-car thermal imaging system is an intelligent assistance system for night-time driving, identifying vehicles and pedestrians in front of you and providing alerts, regardless of the time of day or night, to improve overall driving safety.
| Item | CQ-VI61C19 | ||
| Detector | Type | Uncooled FPA | |
| Resolution | 640x512 | ||
| Spectral range | 17um | ||
| NETD | ≤ 40mK | ||
| Focal length | 19mm | ||
| FOV | 32°×24.2° ±5% | ||
| Image performance | Palette | White heat, black heat (green red, red heat) etc. | |
| Image adjustment | Automatic brightness and contrast adjustment | ||
| Image enhancement | Automatic | ||
| Image output | GMSL and PAL | ||
| Image magnification | 2x Electronic magnification | ||
| Frame rate | 30Hz | ||
| Power | External power | DC 12V | |
| Consumption | ≤5W (≤9W Heating defrost) | ||
| Reverse polarity protection | With power reverse and over-voltage protection | ||
| Environment | Working temp | -40ºC-+85ºC | |
| Storage temp | -40ºC- +90ºC | ||
| Protection Class | IP69K (Thermal Module) / IP52 (Control module) | ||
| Physical parameters | Weight | Thermal Module ≤ 230g / Control module ≤ 370g | |
| Size | Thermal Module ≤ 68×51×58mm / Control module(ECU) ≤ 150×103×28mm | ||
| Smart Assist | Heating function | ≤ 2ºC±1ºC Turn on the heating function / ≥ 7ºC±1ºC Turn off the heating function | |
| Self-detection function | With power-on self-test and fault detection function, and send fault information to the instrument to light up the indicator | ||
| Early warning function | With driving detection warning | ||
| Others | Power-on response | ≤ 10s | |
| Exterior colours | Black and Aluminium primary colours | ||
| Lens protection | High-strength glass | ||
