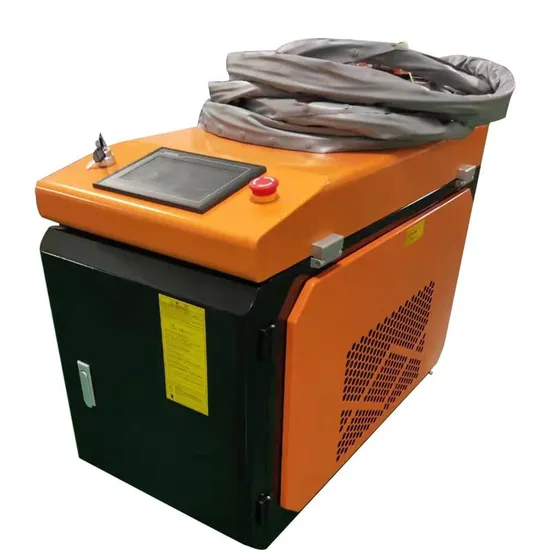

1000W Fiber Laser Cleaning Machine Oil Cleaner Cleaning Machine

Product Description

Product Description
1000W/1500W/2000W Hand-held laser cleaning equipment uses optical fiber to transmit high-energy-density laser. The hand-held cleaning head emits light to clean the oxide layer, paint, weld, etc. on the surface of metal materials such as carbon steel, stainless steel, and aluminum alloy. The operation is flexible and convenient.
Compared with traditional cleaning methods such as ultrasonic wave, chemical corrosion and mechanical friction, hand-held laser cleaning has the advantages of no damage to the parts substrate, no consumables, energy saving and environmental protection, and high efficiency. It can remove resin, oil, stain, dirt, rust, coating on the surface of the workpiece , coating, paint, to meet the cleaning requirements of complex modeling and fine positioning in the field of industrial processing with higher cleanliness cleaning effect and lower overall cost of production efficiency.
Mainly used in mold industry, rail transit, shipbuilding industry, petrochemical pipeline, mechanical parts renovation, automobile manufacturing, cultural relic restoration and other industries.
Detailed Photos

Product Parameters
Technical Parameters

Model	DPX-QC1000	DPX-QC1500	DPX-QC2000
Laser Source Type	CW fiber laser source(Wavelength: 1080±3nm)
Output Power	1000W	1500W	2000W
Power Adjustment Range	10%~100%
Welding Mode	Continuous optical cleaning, millisecond pulsed laser cleaning (duty cycle < 100%)
Adjustable Weld Width	0~150 mm
Torch Cable Length	About 7.5m
Torch Weight	<0.8kg
Dimensions(L*D*H)	1200*600*1300mm
Net Weight	230kg		250kg
Power Consumption	<5kw	<7kw	<9.5kw
Operating Voltage	Single-phase 220VAC/ Three-phase 380VAC
Working Environment	Temperature:0~40ºC,Humidity<70%

Cleaning Performance

Cleaning energy of different materials
Model	DPX-QC1000	DPX-QC1500	DPX-QC2000
Thin Rust(20μm)	10m3/h	15m3/h	20m3/h
Paint(120μm)	4m3/h	6m3/h	8m3/h
Thick Rust(100μm)	2.5m3/h	4m3/h	5m3/h
Note: The above cleaning efficiency is for reference only, and the specific cleaning test of the actual product shall prevail.

Application
Certifications

Our Advantages
After Sales Service
1. 7*24 hour2. Response time<12 hours3.Online support4.Product replacement5. Customer field service6. Backup products during repairing for long time cooperators* International warranty ONLY valid if products are purchased directly from Horizon Laser or authorized local distributors/agents.
FAQ
1. What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
2. What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
3. Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
