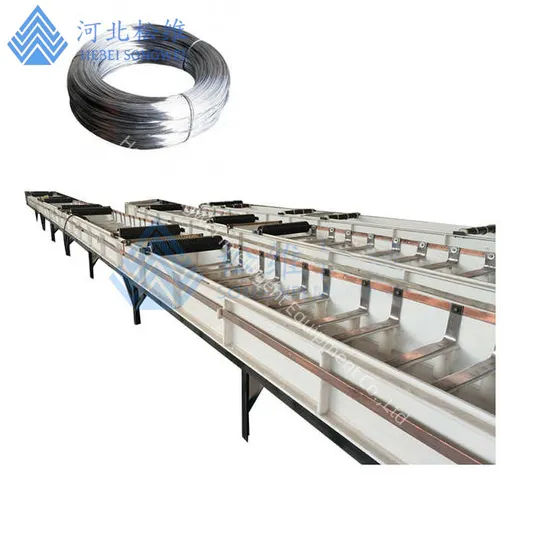

Hot DIP Galvanizing Producing Line Zinc Coating Production Machine

Product Description

Product Description
Automatic spool wire pay-off system→ Natural gas online annealing furnace → Overflow water cooling cleaning → Environmentalprotection pickling → Overflow water cleaning → Auxiliary galvanizing → Baking board drying treatment → Hot dip galvanizing →Clean → Water cooling → Trunk wire take-up system
Mechanical Specifications

Hot dip galvanized wire production line specifications
Wire diameter	0.8--1.6 mm
Zinc coating thickness	30--60 g/m²
Number of wires	40--70 line
Wire spacing	30 mm
Annealing method	On line annealing
Zinc layer control	Wipe system
Wire pay-off system	Wire spool
Wire take-up system	Trunk coiler or inverted coils type

Machine Advantages
Wire pay-off system.
The spool paying off adopts a damping paying off frame, and the tray is equipped with a constant tension device to control the paying off tension, so as to make the steel wire walk smoothly and stably.
Natural gas online annealing furnace.
It adopts natural gas eye brick annealing furnace, box steel structure, segmented bolt assembly of furnace body, welded steelstructure of furnace body shell, good overall sealing performance, segmented assembly, reducing on-site installation time.
Water cooling tank.
The cooling tank is used to control the temperature when the steel wire enters the pickling tank, ensure the stability of pickling
tank work and clean the impurities on the steel wire surface.
Environmental acid washing.
Turbulent smokeless pickling is an advanced pickling technology. The steel wire cleaning process is in a completely closed pickling space, which is suitable for the rapid cleaning process of steel wire and meets the speed requirements of hot galvanizing.
Water cleaning tank.
The secondary overflow cleaning method is adopted to eliminate the residual impurities and residual liquid in the steel wire cloth. The cleaning room is made of 20 mm thick high-strength PP material.
Wire drying.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Zinc ingot.
We can provide zinc ingots, and customers can also purchase zinc ingots from China or their own countries.
Zinc pot.
Zinc pot is welded with 08 steel zinc pot special plate and has natural gas external heating structure. The temperature of zinc pot is controlled by corrosion-resistant thermocouple.
Wire take-up system.
The take-up system adopts trunk take-up machine, and the winding is stable. The diameter of the take-up drum can be customized.
Finished hot dip galvanized wire.
The finished hot-dip galvanized wire can be weighed directly and wrapped with plastic film.
Customer and Market
Friends from all over the world. All key spare parts of the company are independently produced by us to control their processing accuracy and quality, thereby extending the service life of the machinery.The company has taken the lead in passing the ISO9001:2008 quality system certification and the EU CE product safety certification in the same industry, providing reliable assurance for excellent product quality.
The company's machinery and equipment sell well in China, and are exported more than 100 countries and regions such as Romania, Lithuania, Turkey, Poland, Belarus, Ukraine, Russia, Kazakhstan, Saudi Arabia, Egypt, Algeria, South Africa,Vietnam, Thailand, India, Pakistan, Philippines, Indonesia, Australia, Mexico, Colombia, Argentina, Bolivia, Brazil, etc.
After more than ten years of development, the company has grown into one of the leading enterprises in the industry. We adhere to the tenet of "customer first, technology leading". In the future, the company will comprehensively promote industrial development and upgrading, and build the world's leading steel processing equipment. Company Profile
Factory History
Hebei Songwei Intelligent Equipment Co., Ltd. was established in 2002 and is located in Hebei Province, China. It is a high-tech enterprise specializing in the design and manufacturing of metal wire drawing equipment, galvanizing equipment, and their auxiliary equipment. It enjoys a high reputation in the metal wire drawing and processing industry.
Factory Strength
The company currently has 3 production and processing factories, with 8 workshops including metal cutting, precision machining, equipment assembly, and electrical assembly, with a total area of approximately 30000 square meters. The company has advanced processing equipment such as plasma welding, shearing machines, and CNC lathes.
Development Goals
Hebei Songwei Intelligent Equipment Co., Ltd. is committed to international development and participates in at least four international exhibitions each year, taking this opportunity to showcase the company's advanced technology and products to the world and deepen exchanges and cooperation with global partners. FAQ
Q: Are you a manufacturer or a trading company?
A: We are manufacturers. We have a group of high-quality engineers and experts who have been engaged in the field of wire processing equipment.
Q: What are your company's main products?
A: We specialize in the research and manufacturing of machinery such as wire drawing machines, galvanizing lines, annealing industrial furnaces, and nail making machines.
Q: What can we provide to customers?
A: Our professional production and technical personnel can train our customers' employees to ensure their smooth production. And we will provide after-sales service to our customers.
Q: How long is the warranty period for the machine?
A: Warranty period of one year (from the date of completion of mechanical debugging in the buyer's factory).
Q:What machinery does your company mainly produce?
A:Our main products include straight line wire drawing machine, pulley wire drawing machine, water tank wire drawing machine, galvanized wire production lines, annealing furnaces, Welding wire copper plating production line, Welding rod production line, nail making and coils nails machines, etc.
Q: Why did I choose your company?
A: We have over 10 years of professional experience in the production of cable machinery, High security products.
We have a team of experienced technical workers and engineers.
We can support overseas training of engineers.
We can customize designs and accept customer sample designs.
We can provide after-sales service to customers.
Note:
Please provide following information if you want the directly quotation:
1. Wire Material:
2. Inlet Wire Diameter range:
3. Outlet wire Diameter range:
4. Where and what does the wire use for:
