Sjsz65/132 Twin Screw Extruder UPVC Window Making Machine/UPVC Window Profile Extrusion Machine

Product Description

Product Description
1.This upvc pvc window profile extrusion machine can produce PVC UPVC window door profile, PVC ceiling, PVC window sill, PVC door, PVC cable trunking and other profiles.2.The upvc pvc window profile extrusion machine is composed by twin screw extruder, vacuum calibration and forming table, haul off machine, cutter, stacker.
3.The upvc pvc window profile extrusion machine can choose different specifications of conical twin-screw extruders according to different profile sections and molds, and configure the corresponding vacuum calibration table, tractor, cutting machine, stacker and other auxiliary equipment such as PVC hot and cold mixer,PVC miller and Crusher etc..
Machine working process
Raw material +wood power+ additive → mixing → conical twin-screw extruder → profile extrusion mould → cool molding die → vacuum calibration support → belt haul-off → cutter → rack → finished product inspecting & packing
Detailed Photos
Plastic extruder
1.World famous brand electrical component such as Siemens, ABB etc .
2.High torque gearbox with adopts NSKF bearing;
3.Bimetallic screw and barrel;
4.Intelligent PLC controlling system with human-friendly interface.
Mould
1.Material of mold body is Steel 45# ,harden treated and polished.
2.Material of inner mould parts is 40Cr.
3.The material of calibration bushing is Stannum bronze.
4.The width can be customized.

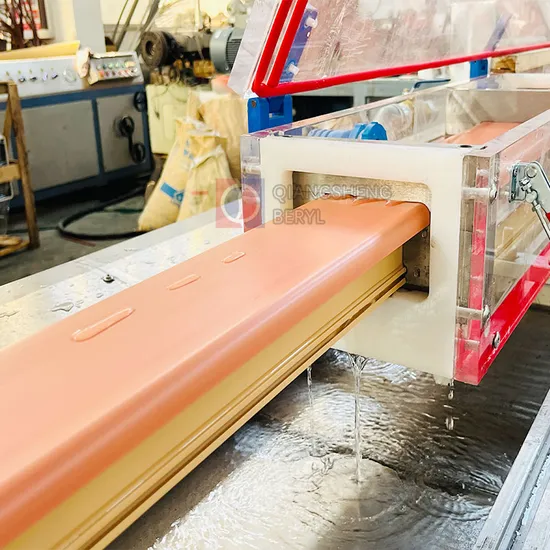

Vaccum calibration table:
1.Calibrating the pipe outer diameter and cooling pipe.
material of water tank is stainless steel 304.
Hauling off machine
1.Function :haul off stably and synchronal with extruder speed.
2.Clamping mode is pneumatically.
3.speed adjusting mode is frequency conversion.
cutter machine
1.Function:cut in fixed length.
2.Cutting type:automatic meter counting cutter.
Product Parameters

Model	YF120	YF180	YF240	YF300	YF600
Product Max size	120x50mm	180x50 mm	240x100 mm	300x120 mm	550x120 mm
Extruder	SJSZ45/90	SJSZ51/105	SJSZ65/132	SJSZ65/132	SJSZ80/156
Capacity	120 kg/hr	150 kg/hr	300 kg/hr	300 kg/hr	400 kg/hr
Production Length	18 m	20 m	24 m	24 m	28 m

Auxiliary machines
