Yhzs35 Capacity 35m3/H Mobile Concrete Batching on Promotion Small Concrete Mixing Plant in China

Product Description

Product Description

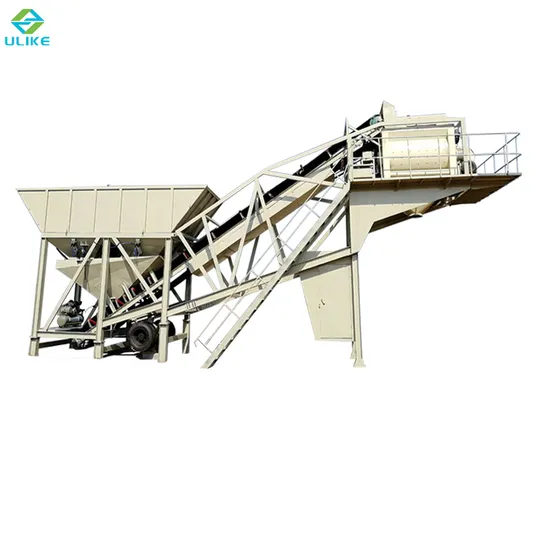

Yhzs35 Capacity 35m3/H Mobile Concrete Batching on Promotion Small Concrete Mixing Plant in China
Mobile concrete mixing plants main features are as follows:
Modular structure, modules, installation, removal is very convenient. Mixers and aggregate increase JS1000 twin shaft compulsory concrete mixer, mixing good quality, high efficiency. Aggregate batching PLD800 concrete batching machine, precise measurement, high production efficiency. Powder material electronic balance measurement, high precision batching. Water scale measurement, high precision batching.
Our mobile concrete batching plant advantages Phase indicator warning system After you connect the power supply, if the fire wire is incorrectly connected, system will active the alarm.
2.Water level indicator
We have 2 water tank, one for feeding the water, one for feeding the concrete mixer. By doing this will reduce the timing for water feeding from ground.
Product Parameters

Model		YHZS25	YHZS35	YHZS60	YHZS75	YHZS120
Theoritical productivity		25	35	60	75	120
Discharge hight		3800	3800	3800	3800	3800
Mixer model		JS500	JS750	JS1000	JS1500	JS2000
Batching machine		2*9M3	2*9M3	2*9M3	2*13M3	2*13M3
Weighing System Accuracy	Aggregate Range	1000KG ±2%	1000KG ±2%	1000KG ±2%	3000KG ±2%	3000KG ±2%
	Cement Range	500kg ±1%	500kg ±2%	700kg ±3%	700kg ±4%	700kg ±1%
	Water Range	300kg ±1%	300kg ±1%	400kg ±1%	400kg ±1%	400kg ±1%
	Additive Range	30kg ±1%	30kg ±1%	30kg ±1%	50kg ±1%	50kg ±1%
Control system		Automatic	Automatic	Automatic	Automatic	Automatic
Max Towing Speed		≤50km/h	≤50km/h	≤50km/h	≤50km/h	≤50km/h
Max Aggregate Size		≤80mm	≤80mm	≤80mm	≤80mm	≤80mm
Total Power		55kw	70kw	85kw	110kw	160kw
Total Weight		19300kg	21000kg	23500kg	32000kg	51000kg
Optional Parts		cement silo, screw conveyor, crusher

Detailed Photos
Packaging & Shipping
Packing and Shipping CONTAINER: Put the machine into container, Maybe need disassemble, cheapest freight and fast shipping ;
Company Profile
Founded in 2006, HENAN ULIKE INDUSTRY Co., Ltd. is a top package equipment solution provider in China, especially for construction machinery parts and so onWe Ulike industry are always committed to offer our customers high quality products with reliable performance, competitive price and comprehensive services, to ensure every engineering project to be run smoothly on schedule. With over Fifteen years' experience in the field of Commercial Vehicle, Engineering Machinery, construction machinery, agricultural machinery and accompanying to fulfill strictly ISO 9001: 2008 standard, we had established and have been consistently keeping good business relationship with many general contractors, civil engineering firms and construction companies throughout the world. We Ulike industry participated as package equipment provider previously include airport projects in Africa, power plant projects in Middle East, dredging projects in South America, highway projects in Oceania, rural and municipal road projects in Southeast Asia, and we are still achieving more and more projects at present. To provide reliable products with quick delivery time, to make prompt reaction for spare parts and after-sales services, to visit the users field regularly for local training and maintenance, Ulike industry has been often praised by our customers and has taken great reputation as a trustworthy project partner. Ulike Inductry believe in combining our own achievement together with our customer benefits. Open communication, effective planning and elaborative preparation always commit us to execute and deliver our promises for our customers all over the world.
FAQ
1. How many days it need to install the concrete plant?
Our team have suficient experience to install the plant,as usual,we only need 7-15 days to finsh it.
2. Why should I choose your concrete plant?
We are a professional manufacturer of concrete plant for more than 20 years,we attended many national projects and the customers are satisfied with our quality.
3. What are your payment terms?
T/T, L/C, Western Union, Moneygram, Paypal or other.
4. Do you have CE and ISO9001 certification?
Yes,all of our product have passed CE and ISO9001 certification.
5. How long is your product warranty?
Our warranty period is one year.

After Sales Service

Before-Sale	After-Sale
1. Airport pickup, Booking hotel.	1. Visiting the famous scenic spots in zhengzhou.
2. Visiting our company yard, Enjoying Free test drive.	2. 1-Year warranty for All the equipments
3. Different machines to compare with each other.	3. A lifetime of parts and technical support.
4. Interpreting mechanical configuration information in detailed.	4.Fast parts deliver and quick reply for any feedback .
