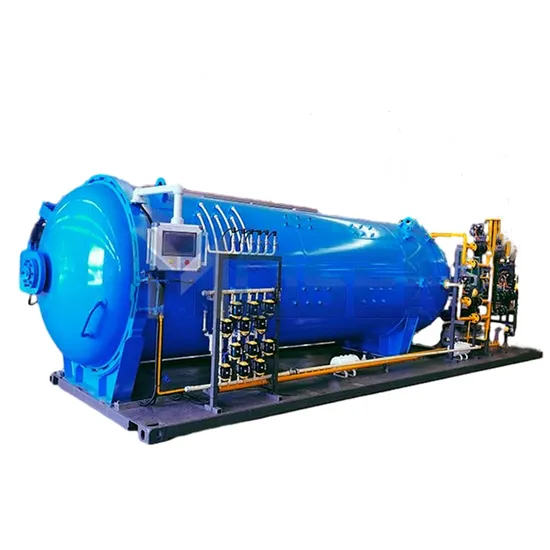

Fishing Rod/Kayak/Carbon Fiber Paddle Autoclave for Carbon Fiber Composite Autoclave

Product Description

Product Description
Autoclave is mainly used for metal/non-metal bonded structural parts and resin-based high-strength glass fiber, carbon fiber, boron fiber, aramong fiber and epoxy resin composite material hot pressing curing molding key equipment.
When the material is formed, the uniform temperature and pressure environment provided by the autoclave is used to achieve curing, so the composite material with high surface and internal quality, complex structure and huge area can be obtained.The curing of composite matrix resin is related not only to the molecular structure of resin, but also to other components (curing agent, crosslinking accelerator, etc.). External conditions - temperature, pressure and time factors play an important role in curing, usually called these three factors as the main process parameters, all autoclave molding process methods must be based on the molecular structure of the matrix resin to determine its corresponding process parameters, autoclave must have the function of controlling these process parameters.

Effective Curing Diameter	φ3500-4200mm
Shell Diameter	3900-4700mm
Effective Curing Length	According To The Product,Tooling And Yield Selection
Shell Length	3900-4700mm
Maximum Operating Pressure	0.6-4.0MPa
Maximum Operating Temperature	160-400ºC
Number of Vacuum Channels	According To Demand(Vacuum Pump 2 Used 1 Standby)
Number of Thermocouple Routes	Specify As Required
Control System	Host Computer +PLC Logic Control+Intelligent Instrument+Substance Recorder+Floor Console, Etc.
Temperature Control Accuracy	≤±1ºC
Temperature Uniformity	≤±2ºC
Rising and Cooling Rate	0-6ºC/min Adjustable
Pressure Lifting Rate	0-0.1MPa/min Adjustable
Cooling Method	Circulating Water Cooling
Heating Method	Electric Heat Pipe Or Thermal Oil Heating

Application
Company Profile
Shangdong Mosen Machinery Tech Co.,LTD.is a pressure vessel manufacturer integrating scientific research, design. production and sales. As a manufacturer of composite pressure vessels, the company has ISO/ASME/CE/DOSH quality system certification and sa roduction standardization system certification. The existing senior technical engineers are responsible for the design. process,materia elding, flaw detection,inspection and other functions in the quality assurance system, and can produce a variety of specifications models of pressure vessels. For the major enterprises to provide professional equipment and supporting services. The company focuses on the future,continuous innovation and development, has a sound management system and quality assurance system,for customers to problems, enjoy a good reputation at home and abroad. Our company's main production equipment are:Large miltary composite autoclave,carbon fiber autoclave,composite autoclave,class fiber autoclave,auto pars composite autoclave,civil composite autoclave,small lab autoclave ,et ., equipment classification is complete, models are diverse, to meet the production needs of different users for different products, but also to provide customers with sample testing,personnel training and other all-round services.With excellent control system and perfect service system. our equipment has been exported to all over the world, and has been highly praised and recognized by customers, and is also widely used in aerospace,Chinese weapons, rail transit, ships and help China's manufacturing industry.
OEM service, Strong production capacity and competitive price.
Stable and fast transportation and delivery
Door to door Service Excellent After-Sale Service.
Perfect quality program,100% test before delivery
We are a factory and direct sell, with price and technology advantages Certifications
Packaging & Shipping
FAQ

Q1:Are you a factory or a trading company ?
A1:We are the factory, located in Shandong. Expecting your visit at anytime.
Q2:How long is the delivery time of bulk orders ?
A2:Bulk order lead time: About 35 working days.
Q3: How to pay?
A3:We try to make all payment methods as much as feasible. TT and L/C are acceptable and TT will be more appreciated.
Q4: What is your advantage ?
A4:We also have professional technical team in designing and producing which can meet different requirements from customers, we offer 24 hours pre-sales and after-sales support, to ensure in-time communication between clients and us.
Q5: Is the price on your website is the closing price ?
A5:No, it is just for your reference, an exact quotation based on your requirement Please contact us for details.
Q6: May I inspect before delivery?
A6:Sure, welcome to inspect before delivery.And if you can't inspect by yourself,
our factory has a professional quality inspection team to inspect the goods
before shipment to ensure quality.
