PRT TC NTC and other temperature sensor probe intelligent multi-channel temperature resistance readout

Product Details

Product Description

Product Description
Products Description

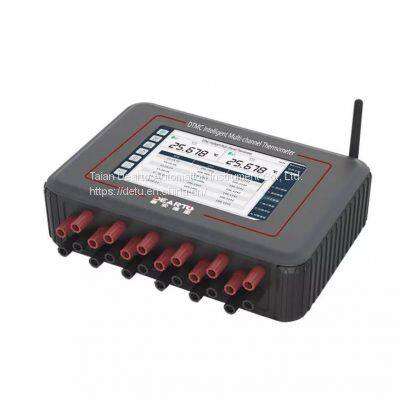

DTMC series intelligent multi-channel thermometer is a multi-channel and multi-function
thermometer based on modular design. The whole series is divided into four configurations: single-channel, two-channel,four-channel and six-channel. Platinum resistance measurement module, thermocouple measurement module or thermistor measurement module can be selected respectively, which have many advantages such as high precision, wide sensor coverage and rich functions.
The product can be connected to the PC terminal or mobile terminal by wired or wireless way, suitable for thermostatic bath temperature field test, thermocouple furnace temperature field test, dry block furnace temperature field test, can be widely used in measurement calibration, scientific experiments and other precision temperature measurement related fields.
Product Features
▶ Support standard platinum resistance(SPRT), industrial platinum resistance(PRT), thermocouple(TC)and thermistor(NTC) and other temperature sensors
▶ Support for the editing and configuration of the platinum resistance and thermistor sensor parameters
▶ The thermocouple channel provides an independent built-in cold-end temperature sensor with a temperature measurement accuracy better than 0.1℃
▶ Thermocouple cooling end compensation provides fixed value, internal automatic compensation and external compensation
▶ Each channel independent sampling, modular design, effectively improve the reliability and adaptability of the apparatus
▶ Each channel can be calibrated and corrected by single point, multipoint, piecewise linear or least squares independently
▶ Provide historical data, statistical data, curve data and other data display forms
▶ Support voltage, resistance, temperature and other data format storage and output
▶ Provide encryption algorithm support, can encrypt the data files, effectively improve the security
▶ Support RS232 and wireless communication mode, can connect to PC or mobile terminal
▶ Provide 8G large-capacity storage space for data storage
▶ Seven-inch industrial-grade color touch-screen display
Product Paramenters
Channel technical indicators
[1] Accuracy index: ± (ppm reading + ppm range);
[2] Temperature coefficient index: increase the ppm reading per degree beyond (15 to 25) ℃.
General technical indicators

Power requirement	12VDC 2A
Communication interface	RS232 Wireless
Shell material	Alufer +ABS
Module size	250mm×170mm×70mm
Module weight	2kg
Environment	Use		（5~35）℃,（0~85）%rh
	Store		（0~70）℃,（0~100）%rh
