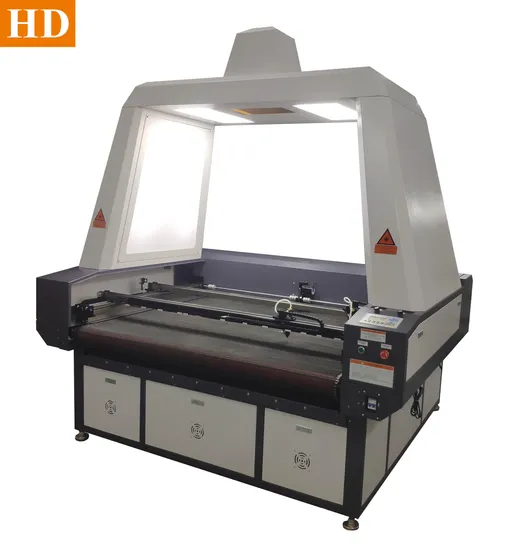

100W 130W Top CCD Canon Camera Position Auto Feeding Conveyor Table Double Head Large Format Label Printing Fabric Foam Shirt Suits Jersey CO2 Laser Machine

Product Description

Machine Feature:
1. The machine body applied with most solid design which can ensure no deformation long time operation and transportation.
2. The machine fixed with LEADSHINE brand stepper motor and driver, inner guide running system.
3. Adpots with adanced DSP control technology, fixed with high quality electronic parts, ensure high cutting engraving speed,
high accuracy and high stability, long time usage life.
4. Applied with imported lens and reflector mirror, ensure high laser power efficiency.
5. The machine connect with computer by USB/ INTERNET wire or U disk directly.
6. With water cooling system, exhaust fan and water pump, etc.
7. It have cutting and engraving function, it have half-cut function.
8. Machine size: L x W x H = 227 x 197x 230 cm
Laser cutting machine specification:

Model	1612FV	1612FTV	1812FTV	1814FTV
Tube power ( W )	80, 100,130, 150
Wavelength (mm)	10.6
Working area (mm)	1600X1200	1600X1200	1800X1200	1800X1400
Compatible format	PLT, DXF, AI, DST, DSB,JPG, BMP, GIF
CANON CCD	EOS 1300D
Connection	INTERNET WIRE
Dimention ( mm )	2250x2200x2850	2250x2200x2850	2450x2200x2850	2450x2400x2850
Cutting speed	30meter / minute
Location precision (mm)	0.1
Repeat precsion (mm)	±0.05
Power	AC220V ± 10%, 50/60HZ
Total power (KW)	3~5
Temperature	0 ~ 45 degree
Cooling	Water cooling
Gross weight (kgs)	1050	1050	1300	1400
Net weight (kgs)	850	850	1000	1100

MACHINE DETAILS
Applicable industry:
Advertising, signage, gifts, garments, shoes, bags, curtain, model, home furnishing, decoration, label, electronical etc industry,
Suitable materials:
acrylics, wood, paper, bamboo, fabric, cloth, leather, shoe bottom, woollen, plastic, ABS, resin, ceramic, and other nonmetal materials.
MAIN MACHINE ACCESSORY

FACTORY INDRODUCTION:
Professional laser machine factory, have more than 10years experience in production of laser equipment.
Applied with high quatiy spare parts, with strict requirement of installation, tuning and testing, that make sure every machine set stabl, long time usage life.
We supply full series of laser cutting machine, CO2 marking machine, fiber marking machine etc.
Aftersales service
1. Whole set machine with 1 year warranty, except consumable parts as laser tube, lens etc.
Lifelong maintainance and repairing support service.
2. Profesional technical team support by email or online timely, free software update.
3. If need, we can send technician to cuostomer local place to supply service and support.
