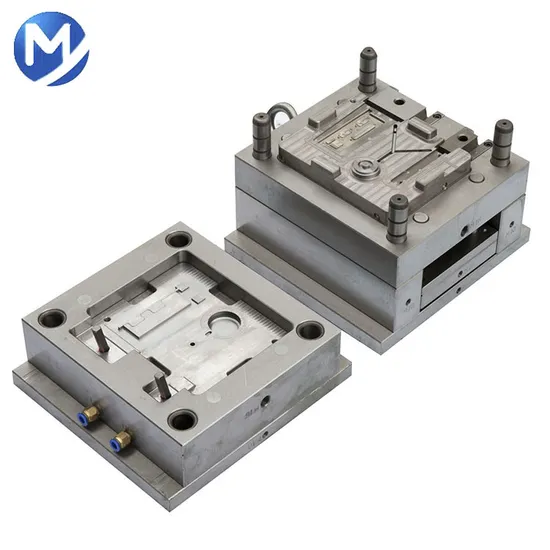

High Standardized Precision Customer Design Electronic Plastic Parts Housing Injection Tooling
| US$1,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
w22
Mould Cavity
Multi Cavity
Plastic Material
PC
Process Combination Type
Compound Die
Application
Car, Household Appliances, Furniture, Commodity, Electronic, Home Use, Hardware
Runner
Hot Runner
Certification
TS16949, ISO, FDA
Standard
HASCO
Customized
Customized
Gate Type
Valve Gate/Open Gate/Sub Gate/Edge Gate
Mold Steel
Nak80,SKD61
Cycle Time
40s
Cavity
as Per Client′s Requirement
Production Material
as Per Client′s Requirement
Shape
Base on Drawings
Transport Package
Carton
Specification
Customized
Trademark
MYMOULD
Origin
Shanghai, China
HS Code
8480719090
Production Capacity
300 Sets
Product Description
High Standardized Precision Consumer Electronic Product Housing Injection Tool1. Start from part design analysis.
2. Mold design drawing and DFM report available so you can see how is the mold going to be before mold making.
3. If product is complex, moldflow report will be present as well.
4. Indoor workshop ensures you high quality under good control.
5. Normally it takes 15-60 days to make mold, precise time depends on complexity of design.
| Mould material | 100~300k, Mould Material(Soft Mould):P20,718,2738...... 300~500k, Mould Material(Hard Mould):H13,S136,2344...... 500~1000k, Mould Material(Hard Mould):2343EFS,2344ESR, 2367ESR,SKD61...... |
| Specific feed/gate locations | |
| Surface finish | Commercial polishing (General Polishing) Highly polish (Mirror Polish) Matte Finish (EDM Treatment) |
| 3D/2D drawings | STP/ STEP, IGS/ IGES, x_t, CAD |
| Fast mould design | We can be within 1-3 working days after getting customer's drawings. |
| Lead time | 35 - 45 days after getting the mould design confirmation. |
| Mould testing | All of the moulds can be well tested before the shipments. Videos testing the moulds are available. |
| Minimum order | Small orders can be accepted. |
| Production capacity | 45-50 sets/month. |
| Port | Shanghai |
| Runner | YUDO runner, hot Runner, cold runner ... ... |
| Payment terms | L/C T/T Western Union MoneyGram. |
| Mould making service | OEM/ODM service is available. |
| After-sales service | Life-long gurantee, Comes with free mold parts. |
| Safe packing | In strong wooden pallets to avoid any damages during long transportation. |
Why Customers Choose Us?
| We have been engaged in this field for 15 years, we've served customers from the United States, the United Kingdom, Spain, Australia, Singapore, Russia and other countries. |
| Professional Certification |
| Quality control and technology improvement |
| •ISOIS09001:2000 |
| •SGS certificate |
| •The complete quality control system. |
| Precision durable mold |
| •3 CNC: Precision 0.005mm |
| •1 Three dimension:1Precision 0.001mm |
| •1 wire drive slowly: Precision 0.002mm |
| •2 Mirror discharge: Precision 0.005mm |
| 100% Guaranteed Quality |
| •100% tested(Not Just Batch Tested) |
| •SOP standard production |
| •IQC(tested all in matical )-IPQC(tested first parts and prodcut)-FQC(tested finished parts)-OQC(Shipments) |
| •10 professional quality control inspectors |
| Competitive price and service |
| •Delivery time: 2-3 Weeks after order |
| •Provide new design for customers' requirements |
| •Provide DFM Report,Moldflow,Mould Design,MPR,QC Report, Injection parameter sheet,Testing video. |
| •Free provided sample. |
| •10-20% cheaper than other competitors |
| •Return the entire mould cost if you order 500,000pcs product. |
| •Life-long guarantee period, which is much longer among this field. |
