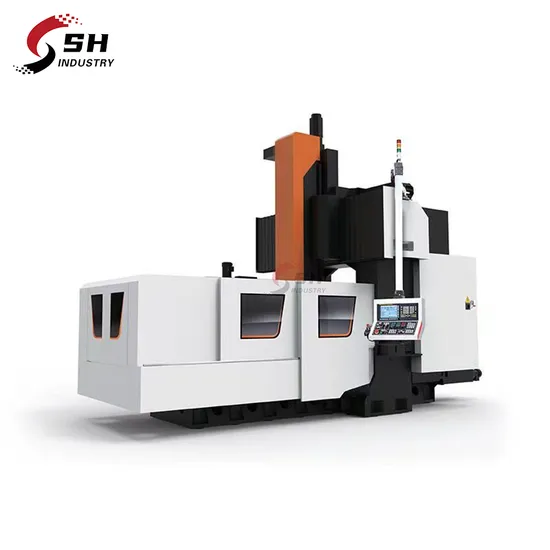

High Speed Accurancy CNC Milling Machining Center Gmc1213 Heavy Duty Gantry CNC Milling Machine Center
| US$40,000.00-80,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GMC1213
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Product Name
High Speed Accurancy CNC Milling Machining Center
Table SizeTmm
1400*1000
Max.Table LoadTkg
1500
T SlotTmm
7-22
X Axis TravelTmm
1350
Y Axis TravelTmm
1200
Transport Package
Plywood Case
Trademark
Shenghuan
Origin
China
HS Code
8457101000
Production Capacity
200
Packaging & Delivery
Package Size
310.00cm * 270.00cm * 420.00cm
Package Gross Weight
7800.000kg
Product Description
High Speed Accurancy CNC Milling Machining Center GMC1213 Heavy Duty Gantry CNC Milling Machine CenterProduct Description
Main technical specifications:
| Specifications | Unit | GMC1213 | |
| Work table | Table size | mm | 1400*1000 |
| Max.table load | Kg | 1500 | |
| T slot | mm | 7-22*130 | |
| Processing capacity | X Axis travel | mm | 1350 |
| Y Axis travel | mm | 1200 | |
| Z Axis travel | mm | 600 | |
| Gantry width | mm | 1200 | |
| Spindle nose to table surface | mm | 160-760 | |
| Spindle | Spindle taper | BT40 | |
| Max.spindle speed | rpm | 10-8000 | |
| Feed | Cutting feed speed | m/min | 1-10 |
| X axis rapid traverse | m/min | 18 | |
| Y axis rapid traverse | m/min | 18 | |
| Z axis rapid traverse | m/min | 12 | |
| Motor | X axis servo motor torque | Nm | 18 |
| Y axis servo motor torque | Nm | 18 | |
| Z axis servo motor torque | Nm | 28 | |
| Main motor power | Kw | 11-15 | |
| Guide rail, lead screw | X/Y axis guide rail | 45mm roller type linear rail | |
| Z axis guide rail | 4-45mm roller type linear rail | ||
| X/Y/Z Ball lead screw | 4011 | ||
| Machine dimension | mm | 3100*2700*4200 | |
| Machine weight | kg | 7800 | |
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
