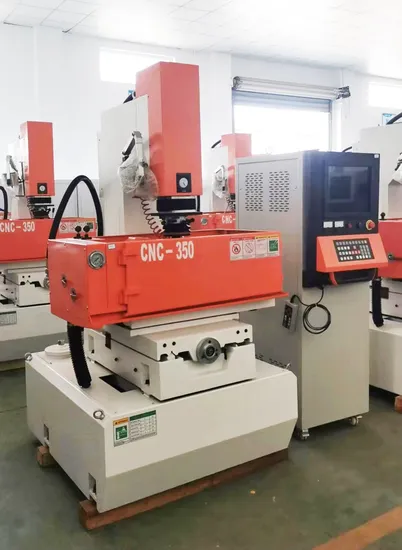

Znc350 Z-Axis Servo Motor Die Sinking Machine EDM
| US$7,800.00-9,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZNC350
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools, Znc
Movement Method
Linear Control
Control Method
Semi-Closed Loop Control
Numerical Control
Znc
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Transport Package
Wooden Box Packing
Specification
1140*565*350
Trademark
Longkai
Origin
Suzhou, China
HS Code
8456301090
Production Capacity
10000/Year
Product Description
| Product Data of Die Sinker Machines ZNC series | ||||||
| Model | Workbench size (mm) | X/Y/Z axis travel (mm) | Inside of working slot (L*W*D) | Electrode Plate To Workbench Distance (mm) | Spindle Head Stroke (mm) | Max Electrode Lifting Weight (kg) |
| ZNC350 | 600*350 | 350*250*200 | 1140*565*350 | 410 | 200 | 120 |
| ZNC450 | 700*400 | 450*350*220 | 1370*670*450 | 525 | 200 | 150 |
| ZNC500 | 800*500 | 500*400*250 | 1420*720*500 | 680 | 300 | 150 |
| ZNC650 | 1000*600 | 600*500*300 | 1850*950*600 | 900 | 350 | 220 |
| ZNC750 | 1100*650 | 700*600*300 | 1900*1000*600 | 920 | 350 | 250 |
| ZNC1060 | 1380*800 | 1000*600*500 | 2200*1100*650 | 500-1000 | 500 | 250 |
| Model | ZNC350 | |
| workbench | 600x350mm | |
| Work slot | 1140X565X350mm | |
| X axis travel | 350mm | |
| Y axis travel | 250mm | |
| Z axis travel | Spindle travel(Z) | 160-180mm |
Auxiliary travel(Z) | 180-200mm | |
| Maximum distance between spindle and table | 450mm | |
| Maximum electrode weight | 120kg | |
| Maximum workpiece weight | 8700kg | |
| Maximum tank level | 300mm | |
| Capacity of filter | 350L | |
| Toral weight (including electric box) | 1300kg | |
