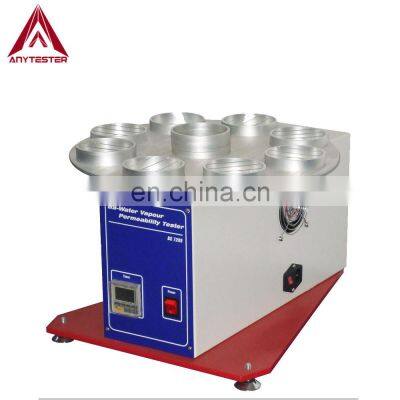

LCD Display Fabrics Textile Water Vapor Permeability Tester

Product Description

Product Description
Product DescriptionHY0462 Water Vapor Permeability Tester is used to determine the resistance of fabrics and textile composites (particularly action wear fabrics) to water vapor penetration.Principle:This instrument is equipped with eight test container and the standard vapor permeability fabric cover, sample holder ring and precision drive system. In the Constant temperature and humidity environment, the sample was covered in the discharge water sample dish, after a certain time the water vapor cross from a fixed area of the sample, take the weight of the water vapor through and calculated vapor through rate and water vapor transmission index.StandardBS 7209, 3424-34GB/T 12704GB/T 12704SpecificationModelHY0462Sample6 pcs, dia.96mm or customizedInternal dia. of test dish83mmInternal depth of test dish18.5mmTest dish combination weight including water120 ~ 150g/groupTest dish load water46cm3Turntablealuminum material, test dish placed at the center of circle diameter PCD 350mmTurntable speed2RPMTest time0 ~ 9999h, settablePower110/220V, 50/60HzDimensions440×530×330mmWeight20 KgFeatures★ Different moisture permeable cups selectable★ LCD display test time★ Automatically stop function★ Modified mechanical process, it’s more beautiful and durable.Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingDimensions1400*900*1600mmWeight200kgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
