US$1.80-15.00
|
1,000 Meters
(MOQ)
|
Basic Info.
Type
Thermosetting Plastic Pipe
Usage
Drainpipe, Agricultural Irrigation Pipe, Suction and Transport Hose for Abrasive Solids
Product Name

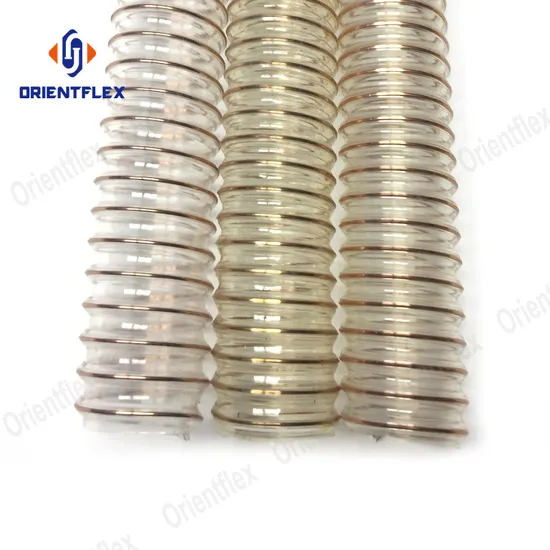

PU Steel Wire Duct Hose
Wall
Top Grade of Ester Base Polyurethane
Spiral
Copper Plated Steel Wire
Length
10m or as Your Requirement
Certification
ISO9001-2008 CE
Characteristic
Light Weight,Good Flexibility
Transport Package
Shrink Wrap, Color Insert and Carton or as Custom
Production Capacity
500000 Meters Per Month
Product Description
Construction:
Wall: Top grade of ester base polyurethane
Spiral: Copper plated steel wire
Application:
Ideally as suction and transport hose for abrasive solids such as dust, powders, wood chips, granulates, oil and fuel etc.Also very suitable for ventilation system and industrial vacuum cleaner
Characteristic:
1.Extremely abrasion-resistant
2.High tensile and burst strength and tearing resistant
3.Could be static electricity conductive by grounding the steel wire
4.Resistant to oil and fuel
5.Extremely flexible and compressible
6.Small bending radius
7.Free of plasticizer
8.Free of halogen
9.Various colors are available
10.Different wall thickness are available
11.Comply to RoHS
Temperature: -40ºC (-104 ºF ) to 90ºC(+150 ºF)
Item Code | I.D | Thickness | Length | Item Code | I.D | Thickness | Length |
mm | mm | m | mm | mm | m |
PUDH025 | 25 | 0.6mm 0.9mm 1.0mm 1.2mm 1.5mm 2.0mm | 20 | PUDH127 | 127 | 0.6mm 0.9mm 1.0mm 1.2mm 1.5mm 2.0mm | 20 |
PUDH032 | 32 | 20 | PUDH130 | 130 | 20 |
PUDH038 | 38 | 20 | PUDH140 | 140 | 20 |
PUDH045 | 45 | 20 | PUDH150 | 150 | 20 |
PUDH050 | 50 | 20 | PUDH160 | 160 | 20 |
PUDH051 | 51 | 20 | PUDH165 | 165 | 20 |
PUDH055 | 55 | 20 | PUDH170 | 170 | 20 |
PUDH060 | 60 | 20 | PUDH175 | 175 | 20 |
PUDH063 | 63 | 20 | PUDH180 | 180 | 20 |
PUDH065 | 65 | 20 | PUDH200 | 200 | 20 |
PUDH070 | 70 | 20 | PUDH215 | 215 | 20 |
PUDH075 | 75 | 20 | PUDH220 | 220 | 20 |
PUDH076 | 76 | 20 | PUDH250 | 250 | 10 |
PUDH080 | 80 | 20 | PUDH265 | 265 | 10 |
PUDH090 | 90 | 20 | PUDH275 | 275 | 10 |
PUDH100 | 100 | 20 | PUDH300 | 300 | 10 |
PUDH102 | 102 | 20 | PUDH325 | 325 | 10 |
PUDH105 | 105 | 20 | PUDH350 | 350 | 10 |
PUDH110 | 110 | 20 | PUDH375 | 375 | 10 |
PUDH115 | 115 | 20 | PUDH400 | 400 | 10 |
PUDH120 | 120 | 20 | PUDH450 | 450 | 10 |
PUDH125 | 125 | 20 | PUDH500 | 500 | 10 |
