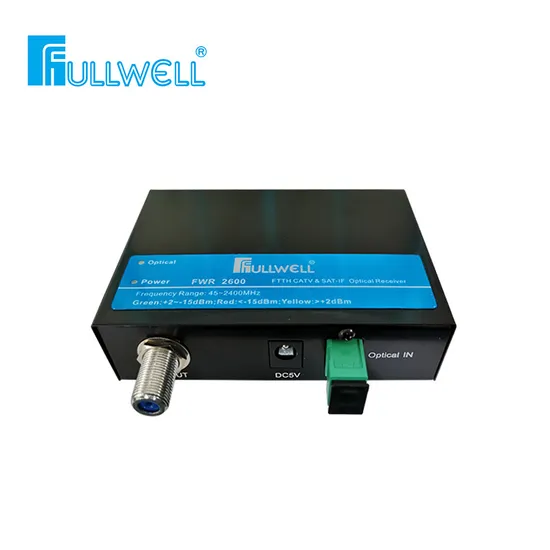

Sat If Optical Node for Satellite TV Signal

Product Description

Items			Unit	Performance Index	Note
IF		Frequency Range	MHz	950~2600	Benchmark: 950~2400
		Output Level	dBuV	82±1	AGC:-2~-12dBm
		Flatness	dB	-1.5~+1.5	-1.0~+1.0/950~2400MHz
		Output Return Impedance	dB	12	14/950~2400MHz
		Channel Load	CH	10	Analogue TV
				64QAM	Digital TV
				36	QPSK or FM
		IM3	dB	-65
		HUM	dB	-60
		IP1	dBm	18
		Output Impedance	Ω	75	50Ω Optional
		RF Connector		75Ω/F-female	50Ω/SMA-F
Optical Index	Receiving Wavelength		nm	1100~1600	FWR-2600D With Fliter:1550
					FWR-2600W With WDM: 1310/1490/1550
	Isolation		dB	≥40	1310/1490nm &1550nm
	Responsivity		A/W	≥0.9
	Input Optical Power Range		dBm	+2~-15
	Return Loss		dB	≥55
	Input Connector		/	SC/APC	SC/UPC Optional
RF	Bandwidth/Flatness		MHz/dB	47-1000	≤±1
	Output Level		dBuv	AGC: 82±1	AGC:-2~-12dBm
	Return Loss		dB	≥14	75Ω Characteristic Impedance
	CNR/MER		dB	≥44/34	PAL-D60CH,OMI3.8%,-9dBm
	CTB/CSO/HUM		dB	≥65/≥60/≥60	-1dBm receive
General Parameter	Power Supply/Consumption		V/W	AC90~250V→DC5/3	Non-stop Work Design For More Than 5 Years
	Working / Storage Temperature		ºC	-35~50/-40~75	Humidity 5~90%
	Dimension		mm	92×82×23
