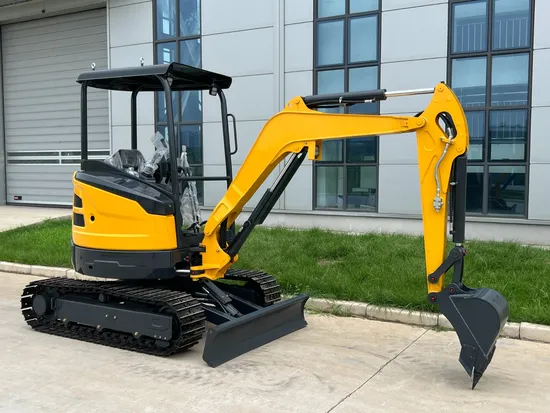

Compact 1.8-Ton Excavator (Digger) for Efficient Earthmoving Tasks

Product Description

KMZ18 Mini Excavator
Excavator engine:KUBOTA
Two speed
Extension track
Excavator dimension:3575x990/1300x2405mm
Excavator weight: 1880 KGS
Excavator Bucket capacity:0.04m³

Description

KMZ18
Type of cab			Canopy
Bucket capacity			m3	0.04
Bucket width, std.			mm	450
Machine weight			kg	1880
Dimensions	Overall length		mm	3575
	Overall height		mm	2405
	Overall width		mm	990/1300
	Ground clearance		mm	145
Engine	Brand		Kubota
	Model		D902
	Displacement		CC
	Output		kW/rpm	11.8/2300
Working ranges	Max Digging height		mm	3570
	Max Dumping height		mm	2480
	Max digging depth		mm	2270
	Max. Digging radius		mm	3910
	Min .swing radius		mm	1440
	Max digging force (Arm)		kN	9.5
	Max digging force (Bucket)		kN	16
Track	Type			Rubber track
	Rubber shoe width		mm	230
Undercarriage	Track length		mm	1593
	Traveling speed		km/h	2.2/4.3
	Gradeability		deg	58/30
Swing speed			rpm	9.5
Ground pressure			kpa	29
Dozer size	Width		mm	750/990
	Height		mm	200
	Lifting capacity (Height/Depth)		mm	215/190
Hydraulic pumps	Type			Axial piston-variable displacement
	Flow rate		L/min	64
Swing motor				Cylinder motor
Travel motor				Axial piston motor
Fuel tank capacity			L	19
Hydraulic oil tank capacity			L	13.7

Details

Certification
Company Profile
Linyi KIMA Machinery Co., Ltd. is a professional mini excavator and small wheel loader manufacturer with more than 15 years of production and export experience. Most products have passed CE and ROPS&FOPS certification. They have been sold to more than 30 countries and regions in Europe, Australia and North&South America and have been widely praised.
KIMA has been committed building the 'KIMA' brand, making every effort to provide customers with safe, energy-saving and efficient products, and constantly developing new products based on market demand and customer suggestions. In addition, KIMA always provides customers with patient, enthusiastic and professional after-sales service.
Professional and excellent team, excellence work attitude, and win-win business philosophy, no matter in the past or now, these are important factors for KIMA's success. In the future, KIMA will still remain true and keep moving. We look forward to establishing a good and long-term cooperative relationship with you. Linyi KIMA Machinery will always move forward with you!
After Sales Service
1. We will supply the whole day's online service to foreign customers. 2. Within the warranty period and if the machine parts are damaged under normal use conditions, we will offer free new ones for replacement.3. After the expiry of the warranty, we can renew the contract, which can enjoy the same service as that during the warranty period.


FAQ:Q1. What Payment terms would you accept? Normally we accept L/C, or /T 30% down payment, balance to be paid against BL copy and loading pictures.
Q2. What is your delivery time? For standard machines, the delivery time is Within 25-35 days after receiving the down payment.
Q3. What services would you offer if I buy from you? Our trained Professional service team offers high-quality, on-time service in a very friendly way. For a good customer
Experience, the content of pre-sales, includes the recommendation on the basis of the right products in physical condition. All you have to do is to inform us of your needs.
Q4. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery.
Q5:What to do if there is a problem with the product? 1. We offer 1 year or 1000-hour running time warranty. 2. We offer technical support for free all the time.
3. We can send the parts to the customers by express delivery as soon as possible.
