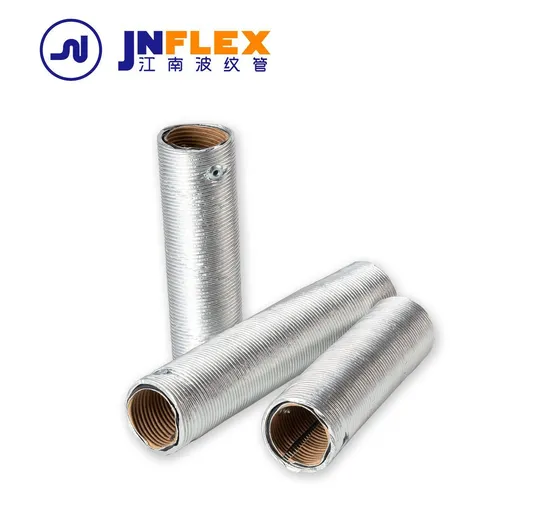

Heat Shield Sleeve Aluminum Foil Insulation Pipe Fiberglass Corrugated Tube for Automotive Protection

Product Description

Introducing our premium High Temperature Protection Aluminum Foil Fiberglass Corrugated Pipe, expertly crafted for the automotive industry, providing unparalleled resilience against extreme temperatures.Basic Info

Diameter	40mm-130mm	Application	Automobile manufacturing
Trademark	JNFLEX	Length	Customisable
Origin	Changzhou, China	Transport Package	Stardard Export Package
Colour	Silver	Production Capacity	8200 Meter/Meters Per Day
HS Code	701959	Near port	Shanghai,China
Classification	composite insulator	Material	Aluminum+Glass fiber

Marterial	AG	AGA	AAG	AGG	KPA	AGAGA
Length	30mm~3m	30mm~6m	30mm~6m	30mm~6m	30mm~6m	30mm~6m
Layer Structure	Aluminum+Glass fiber	Aluminum+Glass fiber+Aluminum	Aluminum+Aluminum+Glass fiber	Aluminum+Glass fiber+Glass fiber	PET+kraft+ Aluminum	Aluminum+Glass fiber+Aluminum +Glass fiber+Aluminum
Heat resistance	200ºC~250ºC	200ºC~250ºC	200ºC~250ºC	200ºC~250ºC	100ºC~150ºC	200ºC~250ºC
Diameter Measures	φ5.5mm~φ12mm	φ5.5mm~φ100mm	φ10mm~φ100mm	φ10mm~φ100mm	φ20mm~φ100mm	φ10mm~φ100mm
Length tolerance	≤500,±5 500~1000,±10 >1000,±2%	≤500,±5 500~1000,±10 >1000,±2%	≤500,±5 500~1000,±10 >1000,±2%	≤500,±5 500~1000,±10 >1000,±2%	≤500,±5 500~1000,±10 >1000,±2%	≤500,±5 500~1000,±10 >1000,±2%
Number of Knots	≥400	≥400	≥400	≥400	≥400	≥400
Bending Radius Approx	1.5×D	1.5×D	1.5×D	1.5×D	1.5×D	1.5×D
Temperature Resistance	-40ºC~250ºC	-40ºC~250ºC	-40ºC~250ºC	-40ºC~250ºC	-40ºC~150ºC	-40ºC~250ºC
Test Conditions	-40ºC,24H 250ºC,24H	-40ºC,24H 250ºC,24H	-40ºC,24H 250ºC,24H	-40ºC,24H 250ºC,24H	-40ºC,24H 150ºC,24H	-40ºC,24H 250ºC,24H

Product Description

Aluminum Foil Glass Fibre Heat Shield Tube is a reflective corrugated tube designed to provide thermal protection for components in radiant heat environments. Its multi-ply construction of aluminum laminated fiberglass coupled with an aluminum foil exterior also allows for good insulation to components requiring stable temperatures for optimum performance efficiency.

Aluminum Foil Glass Fibre Heat Shield Tube can be used on fuel and hydraulic lines, control cables, and any other critical components in close proximity to engine and exhaust systems.

Detail Photos

Features:

Light weight & hand bendable allowing for elbows & turns to be formed easily during installation

Self-supporting construction allows for bends to stay in place

Resists metal fatigue, weathering, & most corrosive fumes & chemicals

Not recommended for continuous flexing

Application Engineered with precision, our specialist ducts significantly reduce noise levels in air-conditioning systems, ensuring a quieter and more comfortable environment.Enhance your engine bay with our superior component cooling solutions, designed to maintain optimal temperatures and performance.Experience efficient air transfer and exhaust ducting with our solutions, ideal for car, commercial, and leisure vehicle auxiliary heaters, ensuring effectiveness and reliability.Ensure fresh air supply to passenger compartments with our advanced systems, tailored for cars and commercial & off-highway vehicles.Our air conditioning ducts are crafted for excellence, perfect for use in automotive, off-highway, and specialist vehicles, guaranteeing top-tier performance.Our brake cooling and driver cooling solutions are specifically designed for motorsport applications, delivering exceptional performance under extreme conditions.Our advantage

Unmatched Durability	Crafted from a combination of robust aluminum and high-quality paper, our tube is engineered for exceptional durability, lt can withstand the toughest conditions, ensuring that it won't succumb to heat, vibration, or wear andtear.
Easy Installation	Our tubes are a direct replacement for your existing hoses, ensuring a seamless connection without the need for extensive modifications or professional assistance.
Trusted Quality	Aluminum Foil Glass Fibre Heat Shield Tubes are backed by a team of product experts and superior automotive technology for unmatched quality and reliability.
Custom Fit for Your Vehicle	We can size our products to fit your make, model, and specific requirements. Help you upgrade your vehicle's intake system and experience the benefits of increased performance, durability and efficiency.

Company ProfileJNFLEX (CHANGZHOU) CO., LTD Proudly situated in Changzhou City, Jiangsu Province, China since 1995, JNFLEX specializes in cutting-edge flexible connection and protection solutions. Serving diverse sectors such as construction, automotive, high-speed rail, and steel metallurgy, we are committed to quality and innovation. Accredited with ISO 9001, IATF 16949, and CE certifications, we assure our clients of the highest quality standards. Our 20,000-square-meter state-of-the-art facility, featuring 18,000 square meters of dedicated factory space, employs over 120 skilled professionals. We proudly collaborate with Fortune 500 companies and have a global export reach spanning Europe, Southeast Asia, Australia, South America, Africa, and beyond.
At JNFLEX, customer satisfaction is our priority. We warmly invite visitors for cooperative engagements and fruitful business discussions.
Customer feedback
Certifications
Partnerships
FAQ
Q1:Is there a insulator which has the inner diameter 33-35mm?
A1:We can make insulated pipes 35mm-40mm.
Q2:What is the current temperature the insulator can hold the heat?
A2:The insulated pipe can meet your needs, the heat insulation effect reaches 350-400ºC.
Q3:May I ask the maximum thickness of glass fiber on this pipe?
A3:Our common thickness is 0.14mm, the maximum thickness we did is 0.25mm.
