Mobile Sand Making Machine Crushing Machine 50tph Stone Crusher Plant on Sale

Product Description

Product Description
Mobile Crushing Plant is a series of rock and construction waste crushing equipment. It has greatly expanded the concept of crushing operation. Its design concept eliminates the environment, the ground, complex basic configuration and complex logistics which bring customers breaking barriers.
Input size: 0-200mm
Capacity: 50-790tph
Processed Materials: Andesite, river stone, limestone, Iron ore, copper ore, gold ore, manganese ore, gravel, granite, basalt,mine ore,quartz, diabase,etc. (For hard stone).
Applications:Aggregate field,concrete mixing plant,dry mortar plant desulfurization,quartz sand,etc.
Specifications of High Quality Mobile Crushing Plant
Features: 1.Mobile Crusher is high performance of secondary crushing machine.
2.High capacity integral crushing&screening
3.Belt conveyor self-loaded
4.The automatic-portable conveyor for return material make the installation of the whole plant quite easy.
5.Landing legs adopt hydraulic lift mode which is of convenient operation and reliable performance.

Technical Data//Model		Y3S1848CS75	Y3S1860CS160	Y3S1860HP220	Y3S2160HP220
Transportation size(mm)		12000x2800x4300	13400x2820x4350	13400x2820x4350	13400x2820x4350
Weight(t)		28	46	42	43.5
Tire Configuration		Dualaxial	Triaxial	Triaxial	Triaxial
Cone Crusher		CS75	CS160	HP220	HP220
Discharging Belt Conveyor		B800×6M	B800×8M	B800×8M	B1000×8M
Vibrating Screen		3YZS1848	3YZS1860	3YZS1860	3YZS1860
Electric control	standard	control box + control panel	control box + control panel	control box + control panel	control box + control panel
	Optional	Control box + LCD	Control box + LCD	Control box + LCD	Control box + LCD
Hydraulic leg	standard	4	4	4	4
	optional	2	2	2	2
Hydraulic cycliner	standard	0	0	0	0
	Optional	2	2	2	2
Genset(optional) (Kw)		180	320	440	440

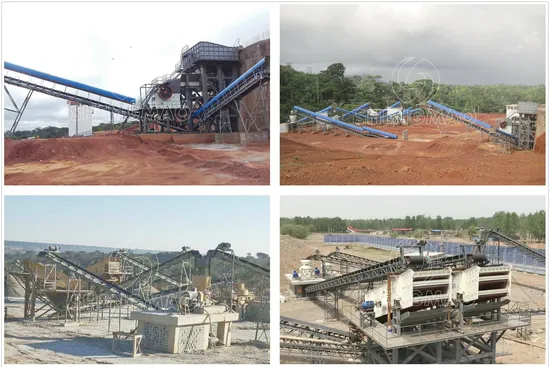

Our projects
Company Profile

Henan Shengmao Machinery Co., Ltd., founded in 2001, located in Xingyang, Zhengzhou, Henan. Mainly engaged in the development,production and sales of construction machinery. It covers an area of 80,000 m2 and has more than 700 employees, including 45 engineers, 80 professionals, 56 sales and more than 500 technicians.
Main products are concrete mixer, concrete batching plant, asphalt plant, horizontal cement silo, batching machine, screw
conveyor, brick making machine and other construction machinery. At present, the products are exported to more than 90 countries and regions such as Russia, Uzbekistan, Philippines, Sri Lanka, Malaysia, Indonesia, Bangladesh, Australia, USA, Chile, and Argentina etc.

Our Services
Pre-sale Service
1 Answering customers' questions, helping customers choose the most suitable machines;
2.Making design drawings as per customers' requirements;
3. Providing quotations.
In-sale Service
1. Strictly control all procedures from raw materials sourcing to pre-assembly to ensure product quality;
2. Regularly updating production progress to clients;
3. After the production is completed, pre-assembly and test running will be carried out to make sure our machine works well;
4. Proper packing to minimize the risk that the machines are damaged during transportation;
5. Foundation drawing will be provided for clients to make the foundation in advance.
After-sale Service
1. Providing 7 * 24 hours online after-sales service every week;
2. Providing related certificates, customs clearance documents, operation and maintenance instructions, installation videos, etc.
3. Arranging engineers to go to the client's job site. The engineers will help clients with the machine installation, machine test-running, and operators' training, etc.
4. Spare parts supply;
5. Job site visiting every year.
