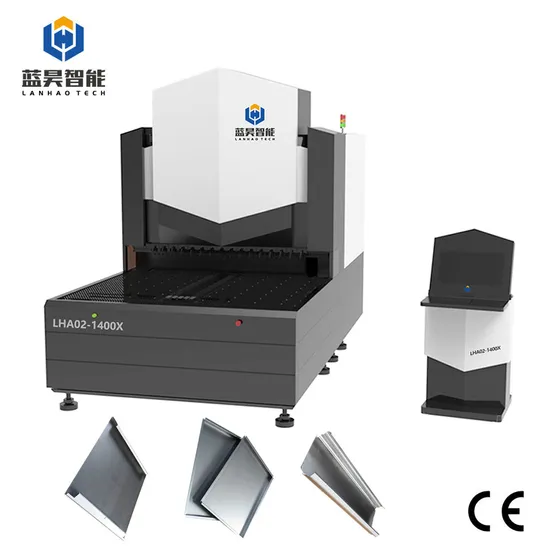

Elevator Automatic Panel Bending Machine for Stainless Steel Aluminum Plates
| US$65,000.00-70,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LHA-1400X
Condition
New
Certification
ISO 9001:2000, ISO 9001:2008, CE
Automation
Panel Bender
Suitable for
Aluminum, Carbon Steel, Stainless Steel
Type
Panel Bender
Max.Bending Size
1000mm*1000mm
Feeding Structure
Suction Cup
Max. Bending Thickness
2mm
System Minimum Accuracy
0.001mm
Four Side Forming Min. Inner Size
About 140mm*210mm
Minimum Bending Thickness
0.35mm
Core Components
Bearing,Servo Motor,Screw Rod,Line Rail
Specification
1000X
Trademark
LANHAO
Origin
China
HS Code
8462230000
Product Description
LHA02-X series intelligent panel bender adopts suction cup loading method. The whole machine is designed and produced in accordance with high-precision machine tool standards. Used on smooth panel surface, no punching, no holes, which benefits suction cup to adsorb. The equipment has been iteratively upgraded in multiple versions, stable and reliable, supporting long-term operation,which greatly improves the production efficiency of bending enterprise. Product Parameters| LHA-1400X-02 Technical parameters | |
| Loading method | Suction cup |
| Worktable structure | Brush |
| Max. bending speed | 0.2 second/time |
| Max.bending width | 1400mm |
| Max.Bending size | L1400mm W1400mm |
| Max. Bending height | 170mm |
| Rated voltage | 380V |
| Total power | 34KW |
| Average power | About 1.5KW |
| Noise decibels | About 50 db |
| Machine size | L365cm W190cm H280cm |
| Total weight | 10 tons |
| User operating environment | Win7 or above operating system |
| Max. Bending thickness | UTS 520N/mm2 304 stainless steel 1.0mm UTS 410N/mm2 cold plate 1.2mm UTS 265N/mm2 aluminium plate 1.6mm |
| Min. Panel thickness | 0.35mm |
| Four sides forming, min. Inner size | 140mmx210mm |
| Double sides forming, min. Inner size | 140mm |
| Axis | Standard synchronized 9 axis |
