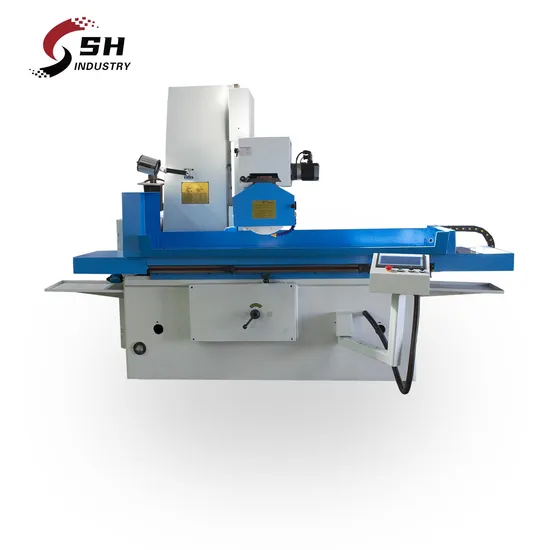

Mk7150 Full Automatic Hydraulic Metal CNC Surface Grinding Machine Tools

Product Description

Product Description
MK7150 Full Automatic Hydraulic Metal CNC Surface Grinding Machine Tools
We are the most professional in making surface gringding machine
Product Parameters
The main performance characteristics:1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.2. Worktable ball track using steel materials for high precision steel balls, abrasion resistance, easily moved and labor saving, and can be greatly improve work efficiency.3. Former after skidway through careful scraping flower, not only slide smoothly, and wear-resisting, maintain good accuracy, flexible and convenient operation. manual worktable driven by synchronous belt transmission, wear well.4. The spindle adopts super precision ball bearing P4, after strict selection after the pre pressure measurement, assembled in the greenhouse, and with the labyrinth design completely waterproof, In order to ensure the service life of the bearing and the grinding surface roughness.5. No vibration, low noise motor spindle.6. According to the needs of users with a permanent magnet sucker or electromagnetic sucker.Application:Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.

Main technical specifications	Description			MK7132	MK7140	MK7150	MK7163
	Size of workatable (L×W×H)		mm	1000×320×400	1000×400×400	1250×500×600	1250×630×600
	Max.Longitudinal movement of worktable		mm	1100	1100	1350	1350
	Max. Distance from the spindle centerline to the worktable surface		mm	580	580	800	800
	Max.Cross movement grinding head		mm	350	450	570	700
	Vertical movement of the grinding head by handwheel		mm	0.005	0.005	0.005	0.005
	Rapid lifting motor	power	Kw	2.3	2.3	2.3	2.3
	Rapid lifting motor	power	Kw	1.2	1.2	1.2	1.2
	Abrasive wheel dim (D×d×w)		mm	Φ350×40×127	Φ350×40×127	Φ400×50×203	Φ400×50×203
	Speed of grinding wheel		r/min	1440	1440	1440	1440
	Total power of motor		Kw	14	14	16.5	16.5
	Power of spindle motor		Kw	7.5	7.5	9	9
	Power of oil pump motor		Kw	3	3	4	4
	Processing accuracy		mm	00:00.0	00:00.0	00:00.0	00:00.0
	Surface roughness		μm	Ra:0.63	Ra:0.63	Ra:0.63	Ra:0.63
	N/G weight		Kg	3980/4200	4300/4600	5500/6200	6500/7000
	Package (L×W×H)		mm	2800×1750×2350	2800×1750×2350	3600×1930×2600	3800×1950×2600

Realistic photos

Detailed Photos

Our Advantages
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
