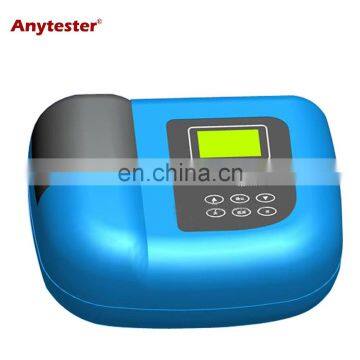

Portable colorimeter spectrophotometer

Product Description

Product Description
Product Description HY1600 Portable colorimeter spectrophotometer is widely used in textile, petroleum, chemical, medicine, environmental protection, universities and colleges, materials science and other fields. It is a necessary analysis instrument for scientific research, production, teaching, etc. It in small size, easy to carry, suitable for field measurement, emergency detection, on-line detection of fast portable analyzer.Features1. Automatically sets wavelength;2. Excellent stability and repeatability;3. All the key components imported from USA to ensure the accuracy of measurement;4. Adopt advanced computer processing technology;5. Built-in high-capacity memory, can store up to 200 test data;6. With automatic calibration of 0%T and 100%T;7. In order to facilitate field operations, optional battery box, charger;8. With standard concentration curve C.Specification:ModelHY1600 Portable colorimeter spectrophotometerOptical systemSingle beam (1200L/mm grating)Spectrum width 4nmWavelength range 325~1100nmWavelength accuracy ±2.0nmWavelength repeatability 1nmPhotometric accuracy±0.002Abs(0~0.5Abs);±0.005(0.5-1.0Abs);±0.5%TPhotometric repeatability±0.001Abs(0~0.5Abs);±0.002(0.5-1.0Abs);±0.2%TWavelength display1nmStray light≤ 0.4% T, at 360 nmTransmittance accuracy ±0.002A(0-0.5A);±0.003A(0.5-1A);±0.3%TTransmittance repeatability≤0.001A(0-0.5A);≤0.002A(0.5-1A);≤0.2%T(0-100%T);Photometric range 0-200%T, -0.3-3.0A,0-9999C(0-9999F)Stability± 0.002A / h (500nm, after preheating)Baseline Linearity±0.002A/hDisplay range0-200%T, -0.3-3ADisplayBig LED screenData outputRS232Light sourceTungsten lampDimension360×280×180mmWeight 6kg
