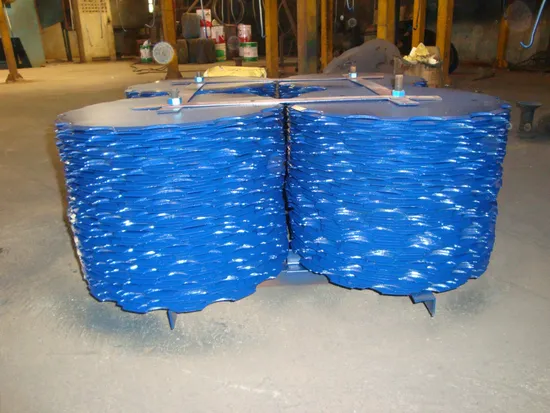

Disc Blade

Disc Blade

US$15.00-25.00 1,000 Pieces (MOQ)

Basic Info.

Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Hanging
Drive Type
Gear Drive
Arbor Configuration
Horizontal Axis
Certification
CE
Color
Blue
Warranty
1 Yerads
Power Type
Match with Tractor to Use
Function
Farm Land Plow
Usage
Farm Tilling
Colour
Red,Blue and Green
Transport Package
Pallet
Specification
24"*5MM
Trademark
Gerzhuo
Origin
Shandong, China (Mainland)
HS Code
84661000
Production Capacity
100, 000 Sets/Year

Product Description

Farmland Light Disc Harrow Plough Middle Disc Harrow Cultivator For Tractor
Product introduction:
The 1BQX series Light-duty Disc Harrow are suitable for pulverized and loosening clods after ploughing and for planning the land
before sowing on cultivated land. The machines can make soil and fertilizer mix up, and clear away the stump of plants on light or
medium soil and preparing seed bed for planting.
The series Light-duty Disc Harrow frame are made of qualified steel tube, Their structures are simple and reasonable, strong and durable, convenient to operate, easy to maintain and efficient in pulverizing and penetrating into the soil and leaves the land with a smooth, even tilth.
All these satisfy the agricultural requirements of intensive cultivation.
Technical parameters:
Model 1BQX-1.1 1BQX-1.3 1BQX-1.5 1BQX-1.7 1BQX-1.9 1BQX-2.3 1BQX-2.7
Overall dimensions(mm) 1590x1230x830 1590x1440x830 1905x1600x1118 1985x1820x1118 2200x2050x1118 2650x2450x1280 2750x2850x1280
Working width(m) 1.1 1.3 1.5 1.7 1.9 2.3 2.7
Working depth(cm) 10~14
No. Of disc 12 14 16 18 20 24 28
Size of disc(mm) 460x3
Disc spacing(mm) 200
Weight(kg) 200 220 240 260 300 420 500
Productivity(ha/h) 0.7 0.84 0.97 1.1 1.3 1.5 1.7
Linkage three-point mounted
Matched power(HP)
12~18
15~25 22~30 30~40 35~45 50~60 55~70

Our Services 1. We can offer you the sample to check our products , if the products are not what you are looking for , please
give me your detail requirement . 2. If you have any questions , please contact me at any time . I will reply you as soon as possible . 3.We also undertake prccessing al kind of CNC machine tools accessories with your requirement. Company information YUCHENG GERZHUO MECHATRONICS TECHNOLOGY Co., Ltd is a competitive private enterprise engaged in production
of machine tool parts. Machine tool parts includes varied of series, and full range specification, specialized in advantage of ER collet,
tool holders and accessories. We have established long-term friendly cooperation relationships with numerous customers all over the
world as following: USA, Sweden, Russia, Spain, France, Italy, Britain, Germany, South-east countries, Latin America countries, Africa
countries and so on. We guarantee the security and quality of our product by optimized and centralized product selections, and have built strong partnerships
with well-known companies in the industry in China.
