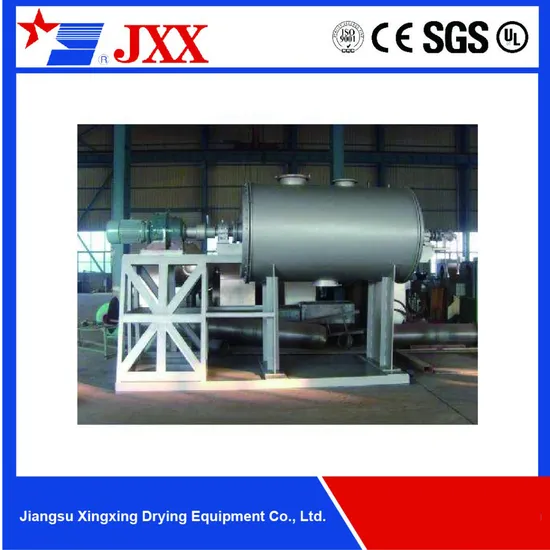

Vacuum Harrow Drying Machine Use in Paste Material

Product Description

Company introduction: Jiangsu Xingxing Drying Equipment Co., Ltd
WORKING PRINCIPLE
ZPG vacuum horrow dryer is a new kind of horizontal batch vacuum drying equipment. the wet materials experience conduction and evaporation. Blade stirrer continuously removes materials from hot surface, and develops a recycle stream in the container. after evaporation, the water is withdrawn from the vacuum pump.
FEATURES
1. this machine uses large areas of layers to do heat, thus enable large heat transfer area and high thermal efficiency.
2. Stirring is set so that the materials in the barrel form a state of continuous circulation, further improving the uniformity of the material being heated.
3. Stirring is set, allowing smooth drying of pasty, creamy and mushy materials.
APPLICABLE MATERIALS
in industries of medicine, food and chemical, it is used to dry following materials:
1. Applied in pasty and powdery materials.
2. Heat-sensitive materials requiring low-temperature drying.
3. Easily oxidized, explosive, strong-irritant and highly-toxic materials.
4. Materials requiring recovering organic solvent.
Technical Parameter

Item	Model
Name	unit	ZPG-500	ZPG-750	ZPG-1000	ZPG-1500	ZPG-2000	ZPG-3000
Working volume	L	300	450	600	900	1200	1800
Heating area	m2	6	7.6	9.3	12.3	14.6	19.3
Srirring revolution	rpm	6-30stepless variable
Power	kw	4	5.5	5.5	7.5	11	15
Design pressure of Jacket(Hot water)	MPa	≤0.3
Vacuum in the cylinder	MPa	-0.09~0.096
