6m Vertical Lifting Table Milling Machine with Nt30 Spindle

Product Description

Introducing the powerhouse of precision: the 6m Vertical Turret Milling Machine with NT40 Spindle. This engineering marvel boasts a robust motor that ensures seamless and powerful operation, making it an indispensable asset for high-performance milling tasks.
Product Description
Mechanical CharacteristicsCrafted from premium Meehanna cast iron, this machine's casting offers remarkable rigidity, ensuring no deformation and outstanding stability, standing firm through the most demanding tasks.Outfitted with a superior precision bearing combination, the spindle delivers unmatched cutting force and precision accuracy, setting a new standard in machining excellence.Ingeniously designed, the end milling head features a unique inverted hanging design for enhanced accuracy, effortless operation, and hassle-free braking. (For customers seeking tailored functionality, special feature products are available)The three-axis screw nuts, crafted from advanced phosphorus meter copper, promise excellent wear resistance and an extended operational lifespan.The XY shaft slide undergoes a meticulous high-frequency ripening treatment, which significantly enhances tail wear resistance and boosts the longevity of the machine.A cutting-edge lubrication system is integrated to ensure the slide operates smoothly, maintaining peak performance throughout its use.
Product Parameters
1.Milling Machine Rotation Speed
The rotation speed of the milling machine is crucial to determining processing efficiency and the size of the cutting force. Generally, higher rotation speeds enhance the milling cutter's cutting capability, improve part surface quality, and reduce surface residual stress.
Milling Machine Cutting Speed The cutting speed is vital in dictating processing speed and quality. An optimal cutting speed is essential for achieving desired results, considering factors like material hardness, cutter material, and machine type. Milling Machine Processing Accuracy Machining precision is a key performance indicator, deeply impacting machining quality and part stability. It hinges on factors such as cutting force, machine and tool rigidity, workpiece clamping accuracy, and initial machine error. Milling Machine Precision Stability Precision stability refers to consistent accuracy during operation. Poor stability increases machining errors, affecting quality. It is influenced by initial machine errors, thermal deformation, and tool wear.

Product Name	Milling machine
Product model	6M
Product technical parameters
dimension	Table size	1370*330MM
journey	Left and right stroke(X)	1000MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	380MM
	Arm reach	600MM
	Distance from spindle end face to table surface	100-480MM
Principal axis coefficient	Spindle taper	NT40
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	5HP
Milling head	Milling head tilt Angle	45° around
Machine profile dimensions	T-slot (Number * Size * Spacing)	3-15.88*75MM
	Machine size (L * W * H)(MM)	2000*1700*2500MM
	Approximate machine weight	1880kgs
The configuration is as follows	Accessories name and specification	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1
Special parts for machine tools	7,Two axis electronic ruler	1
	8, X-axis automatic feed	1
	9, 6 "flat pliers	1
	Clamp plate	1
	11,NT40 chuck	1
	12.Z axis automatic lifting device	1

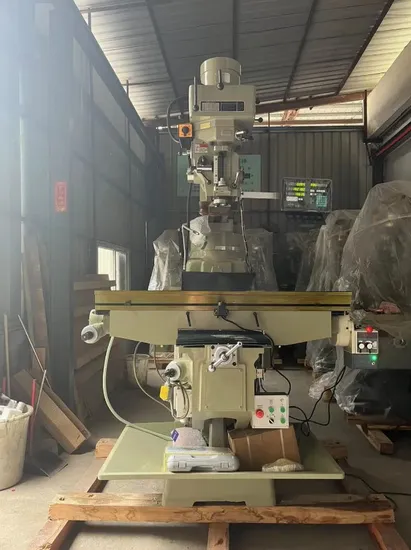

Detailed Photos
Packaging & Shipping
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments, requiring a 40% initial deposit upon ordering and the remaining 60% balance to be paid before shipment. This payment structure ensures a smooth transaction and timely processing of your order.
2. What are your trade terms?
A: We offer flexible trade terms including FOB, CFR, and CIF, giving you the freedom to choose the option that best suits your logistical needs and preferences.
3. When is the delivery time?
A: For our standard Vertical CNC Drilling Machine Center, we guarantee delivery within 30 days. For custom or specialized machines, additional time may be required. Please align your order placement with our provided delivery schedule to ensure timely receipt.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set, ensuring accessibility for all customers. We also offer a comprehensive one-year warranty, reflecting our commitment to quality and customer satisfaction.
5. How are the machines packaged?
A: Each machine is meticulously packed in a robust wooden case, guaranteeing it arrives in pristine condition, ready for immediate use upon receipt.
6. How can I choose the most suitable machines?
A: Provide us with your specific requirements, and we will recommend the most suitable model tailored to your needs. Alternatively, you may select your desired model directly from our extensive range of options.
Alternatively, you can send us your product drawings, and we will identify the ideal machine configuration for your specific applications, ensuring optimal performance and efficiency.
