High Torque Low Rpm 6W~370W 1-Phase Induction AC Electric Gear Motor

Product Description

high torque low rpm 6W~370W 1-phase Induction AC electric Gear Motor
Introduction 1. Lightweight, compact dimension ;
2. Wide speed range and high torque;
3. Low noise and high efficiency;
4. Stable and safe, long lifetime;
5. Multi-structure, various assembling methods;
6. One-stop solution with speed controller, driver, encoder, brake, and transformer available.
Specification

Greensky Micro AC Gear Motors
Motor type	Induction motor, brake motor, torque motor, speed adjustable motor, reversible motor
Frame size	60 mm, 70mm, 80mm, 90mm, 104mm
Motor Output speed	1250rpm - 1500rpm
Gearbox Speed Ratio	1:3 - 1: 500
Output power	60mm: 6W, 10W 70mm: 15W, 20W 80mm: 25W, 30W 90mm: 40W, 60W, 90W, 120W 104mm: 140W, 180W, 200W, 250W, 370W
Output shaft	8mm ~ 50mm; round shaft, D-cut shaft, key-way shaft, hollow shaft
Voltage	1-phase 110V/120V/220V/230V; 3-phase 220V/380V
Frequency	50Hz, 60Hz

Note:
If you need customized AC or DC motors, pls freely contact us. We will provide you with a suitable motor solution and price soon.

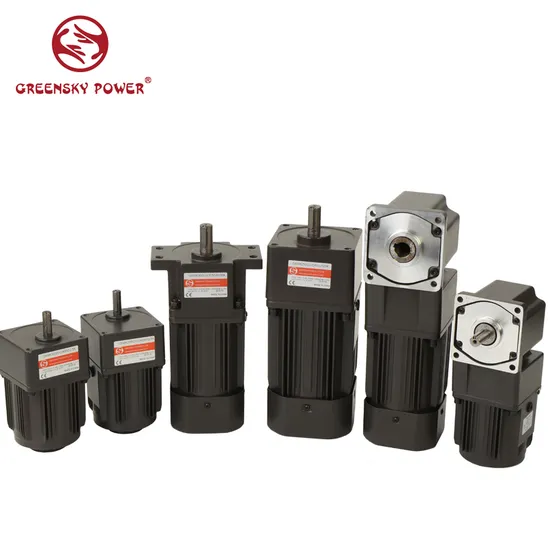

Detailed Photos

FAQ
1 Q: What's your MOQ for AC Motor?
A: 1unit is ok for sample testing
2 Q: What about your warranty for your AC Motor?
A: One year.
3 Q: Do you provide OEM service with a customer logo?
A: Yes, we could do OEM orders, but we mainly focus on our own brand.
4 Q: How about your payment terms?
A: TT, western union, and PayPal. 100% payment in advance for orders less than $5,000. 30% deposit and balance before delivery for orders over $5,000.
5 Q: How about your packing?
A: Carton, Plywood case. If you need more, we can pack all goods with a pallet.
6 Q: What information should be given, if I buy from you?
A: Rated power, gearbox ratio, input speed, mounting position. More details, better!
7 Q: How do you deliver the AC Motor?
A: We will compare and choose the most suitable ways of delivery by sea, air or express courier.
We hope you will enjoy cooperating with us.
