UL94 Horizontal and Vertical Flammability Tester

Product Description

Product Description

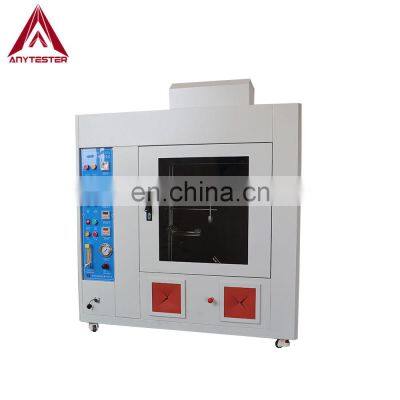

Product DescriptionAT810 Horizontal and Vertical Flammability Tester: A rectangular bar-shaped test specimen is supported horizontally or vertically by one end and the free end is exposed to a specified test flame. Observe if the specimen and ignition on layer is ignited or burning time and to determine the combustibility of specimen.StandardISO 1210, 9770 , 9772 ,9773ASTMD 5207UL94, UL HBGB/T 2408， 5169.16/17, 83325169.16/17, 8332HF-1, HF-2IEC60695-11-10/20SpecificationModelAT810Inclination0°, 20° , 45°Flame height20mm ~ 175mm(adjustable)Burning time1s～999.9sRemove time1s～999.9sIgnition times1-9999timesThermocouple thermometer0.5mm K type, imported insulated high temperature armored thermocoupleTest space>0.7m3Temp measure range0~1050℃Dimensions1200×600×1120mmPower supply220V 50HzWeight120kgDetails & Features★Using digital instrument control system, import control components;★Meet the latest test standards;★Shell with 2mm cold plate outdoor powder paint, both inside and outside the color;★Multi - functional adjustment fixture, professional anti - rust treatment;★One-touch operation design, single person to complete the job independently;★High-power exhaust system, effectively prevent smoke corrosion;★ Silent, up and down design of tempered glass sliding windowOur CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingDimensions1160x510x1050mmWeightApprox. 80kgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
