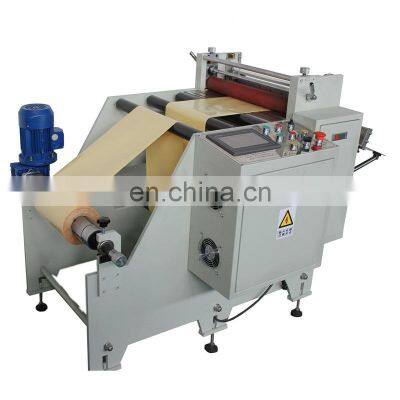

Roll to Sheet Cutting Machine Paper Sheeter

Product Description

Product Description
Roll to Sheet Cutting Machine Paper Sheeter Functional Characteristics:1.With MITSUBISHI Programmable Controller and DELTA Servo Motor Servo Driver2.PLC touch screen operation to set any length, quantity,speed.3.Equipped with automatic unwinding system and air shaft,which will be easy to load and unload.4.Pulling roller with thick PU rubber coated and won't scratch the material.5.Aluminum Guiding roller be polished and hard anodized,very smooth and never harm material.6.SKD11 cutting blade to make sure the cutter use very very long time and cutting material perfect edge at cutting part 7.3 inch or 6 inch unwinding air shaft.8.Can add the Panasonic photocell for printed mark,and can add electrical static eliminator to remove static electricity. Purpose:It is applicable for the cutting of Paper,aluminum foil,copper foil, PET, PC, PVC, PCB, FPC, Lithium battery film, flannelette, metal foil, PVC film, insulation sheet, Mylar, foam, industrial tape, electronic tape and various inch setting electronic materials. Technical Data: ModelDP-500Max Feeding Width ( mm )500Max unwind roll diameter(mm )600Max unwind roll weight(kg)40Unwind shaft diameter3 inchCut 320mm speed ( times/minute )About 70 PLCMITSUBISHIServo Motor Servo Driver DELTA Precision ( mm )±0.10 Power380V 50HZ
