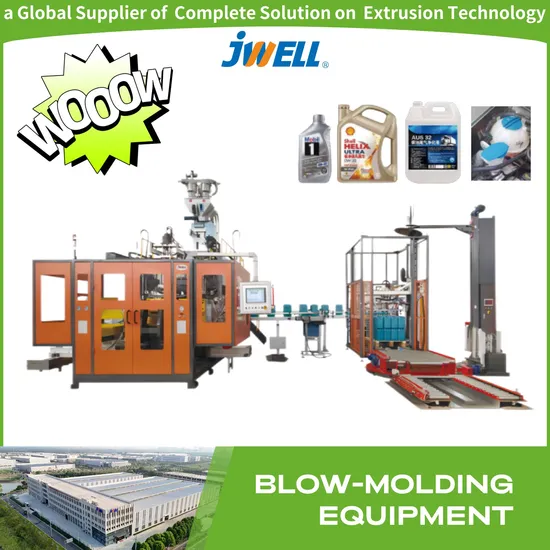

Suitable for Producing 1-5L Different Size of Gear Oil Bottle, Lubrication Oil Bottle, Cooling Water Tank Double Station Blow Molding Machine

Product Description

Product Description
Performance and advantages:
1. Suitable for producing 1-5L different size of gear oil bottle, lubrication
oil bottle, cooling water tank etc.
2. Optional multi-layer co-extrusion.
3. Optional view strip line system.
4. According to the product size,select different cavity of die head.
5. According to the different material,optional JW-DB single station hydraulic screen-exchanger system.
6. According to customer's requirement, optional auto-deflashing on-line, scrap conveying on line, finished product leak testing on line, conveying, packing, etc.,reducing the working cost and increasing the production ratio.
Product Application
Household daily necessities:
Suitable for producing milk bottles, soy sauce jugs, yellow wine jugs of various specifications from 100ml~3000ml.
It can also produce 200ml~5000ml various shampoo, shower gel, detergent and other toiletries containers.
Oil & Lubrication Products:
Suitable for the production of 1L~5L various specifications of motor oil jugs and lubricant jugs.
Suitable for producing 15-30L different size Chemical packaing jerrycan.
Suitable for producing 15-100L different size jerrycan,open-top barrels and others chemical packaging products.
Suitable for producing 100-220L open-top drums, double"L"ring drums.
Suitable for producing 500-1200L drum.
Components for the automotive industry and transportation:
Suitable for producing different kinds of car urea box, tool box, automotive seat, auto air duct, auto flow board, bumper and car spoilers.
Suitable for producing diffferent car shaped pipe fifittings products like the automotive oil fifiller pipe,air ducts pipe and others.
Suitable for producing different kinds of road pyramid, logistic insulation barrels.
Logistics Packaging and Daily Goods:
Suitable for producing different kinds of pallet.
Suitable for producing 100ml-3000ml different size of Milk bottle,soy sauce bottle,yellow wine bottle. 200ml-5000ml different size of shampoo bottle,body wash bottle, detergent bottles and others Toiletries and different children's toys.
Suitable for producing different size of children safety chair, desk board, playgroud facilities.
Medical products and others:
Disposable plastic straw pipe/dropper is widely used in laboratory, food research, medical industrial etc. Specifications are 0.2ml,0.5ml,1ml,2ml,3ml,5ml,10ml Etc.
Suitable for producing different kinds of plastic medical bed head boards,foot boards and guardrails.
Suitable for producing different kinds of blow molding PV floating.
Optional configurations and customization services
1. Multi-layer co-extrusion: Multi-layer co-extrusion system can be optional according to customer's demand to realize multi-layer material compound extrusion.
2. Liquid level line extrusion: optional liquid level line extrusion system can be used to produce containers with liquid level line.
3. Multi-die head extrusion system: according to the size of the product specification, different die head systems such as double die head, three die head, four die head, six die head, etc. can be selected.
4. Hydraulic screen changer system: according to the raw material, JW-DB plate type single station hydraulic screen changer system can be optional, in order to improve the production efficiency and product quality.
5. Online auxiliary equipments: according to the customer's requirement, we can choose the auxiliary equipments such as online de-flashing, online frit conveying, online finished product conveying, etc. to realize the automatic production.
Product Parameters

Model	Unit	BM500	BM1000
Die head structure	Accumulating type	Accumulating type	Accumulating type
Main screw diameter	mm	120	135
Max plasticizing capacity (PE)	kg/h	350-450	550-650
Driving motor	Kw	132	160
Accumulating volume	L	26	45
Oil pump motor power	Kw	30	45
Clamping force	KN	800	1800

Max space between platen	mm	500-1400	700-1900
Platen size W*H	mm	1020-2400	1600*2400
Max.mould size	mm	800-2500	1500*2500
Heating power of die head	kw	25	38
Machine dimension L*W*H	m	8.5*5.5*5.8	10.28*6.2*7.3
Machine weight	t	45	63
Total power	kw	240	302

Detailed Photos
Packaging & Shipping
Our Advantages
1. Advanced production technology: Jwell adopts advanced technology and process to produce PVB and SGP interlayer film to ensure the stability and reliability of product quality.2. Customised production capacity: Jwell is able to customise production according to customers' specific needs and specifications, providing products and services that meet customers' requirements.3. Strict quality control: From precise measurement and mixing of raw materials, to extrusion moulding under high temperature and pressure, to cutting, each step is carefully designed and strictly monitored to ensure that every detail of the product meets high standards.4. Professional technical support: Jwell has a professional technical team, which can provide customers with comprehensive technical support and solutions.5. Perfect after-sales service: Jwell provides perfect after-sales service guarantee system to ensure that customers can get timely solution when they encounter problems in the process of using.
