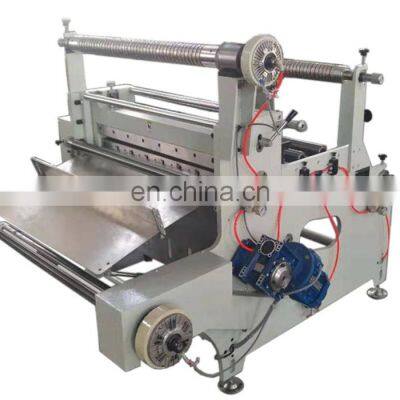

PVC vinyl polyester film roll to sheet cutting machine with laminating function

Product Description

Product Description
PVC vinyl polyester film roll to sheet cutting machine with laminating function Functional Characteristics:This machine employs servo motor to feed material, import PLC touch screen operation to set any length, quantity,speed and finish singleness cutting , equipped with automatic unwinding system and air shaft,which will be easy to load and unloadOne rewind liner slip shaft and one upper unwind slip shaft,The distance between two slip ring is 20mm on this two slip shaft. Purpose:It is applicable for the cutting of Paper,aluminum foil,copper foil, PET, PC, PVC, PCB, FPC, Lithium battery film, flannelette, metal foil, PVC film, insulation sheet, Mylar, foam, industrial tape, electronic tape and various inch setting electronic materials. Technical Data: ModelDP-800Max Feeding Width ( mm )800Unwinding PET film diameter 600Upper Unwinding diameter400mmRewind liner diameter400mmFinished product rewind diameter400mmMain engineer power ( kw )1.1Shaft diameter3 inchVoltage380V 50HZUnwinding shaft2 pcsRewinding shaft 2 pcsLaminating roller2 pcs Configuration list: Touch Screen KUNLUNTONGTAIMade in ChinaProgrammable Controller Mitsubishi Made in JapanServo Driver DELTATAIWAN,CHINAServo Motor DELTATAIWAN,CHINAMotor of cutting knife SHENLIMade in ChinaAC Contactor CHNTMade in ChinaSolid State Relay 20AGOLD ELECTRICAL CONTROL Made in China
