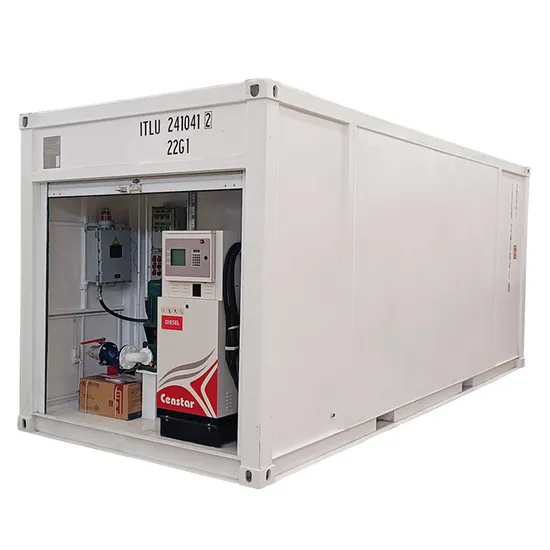

40FT Container Mobile Fuel Station 60, 000 Liters

Product Description

SHENGDING MOBILE FUEL STATION
Function and Application Mobile fuel station is for the distribution of diesel and gasoline with tanks of variable capacity. It is composed of a container, divided into two main compartments, compartment for fuel tanks and compartment for pump and dispenser, and also provided with optional generator. Technical Features --- Fuel tanks of variable capacity, for diesel or petrol, also with option both diesel and petrol in one station.
--- Explosion-proof type to ensure safety.
--- Fuel loading system to load from fuel tank truck.
--- Top lockable hatches to get access to the manholes of tanks and refuel from above.
--- Separate compartment for generator or other equipment, complete with lockable door.
--- Leak detector systems and alarms (in case of double skin tanks).
--- Electric switchboard in the generator compartment.
--- Fuel level indicator
--- Emergency cut-off
--- Static grounding
--- Stainless filters
--- Lighting system
--- Optional generator to supply electricity power Specification Total volume 5,000-40,000 liters, and can be customized.

S. No	Description of configuration	Specification
1	Explosion-proof storage tank	Total volume 5m3-40m3. Tank steel Q235, submerged arc automatic welding process.
2	Lightning and static protection set	With electrostatic grounding device
3	Explosion proof materials	V-type explosion-proof material
4	Fuel dispenser	Dispenser equipped with pump and filling gun
5	Fuel loading system	Explosion proof fuel pump with flow rate of 38m3 / h
7	Liquid level measurement system	Measuring range 0.5-3m, measuring error ± 1mm, with LCD, temperature monitoring function, high liquid level alarm and low liquid level alarm.
8	Airtight loading system	DN80 self-sealing ring valve is adopted for quick connection of oil loading port.
9	Discharging system	DN40 oil outlet pipe, equipped with maintenance protection device.
10	Emergency cut-off device	DN40 emergency cut-off valve, normally closed, automatically cut off oil in case of fire or emergency.
11	Painting	The equipment is polished, derusted and degreased. With external three coats of painting: 80 micron epoxy zinc rich primer, epoxy micaceous iron midcoat, polyurethane cooling and fireproof finish.
12	Other configuration	Anti-static system Oil leakage detection device Manual oil measuring system Automatic fire extinguishing system Emergency pressure relief device Power supply system Anti-overflow system Lighting Filter unit Cleaning device Safety auxiliary facilities Door

Main Accessories
Sample & Application
Packing & Shipping
Our Service Pre-Sales Service * Inquiry and consulting support. * Sample testing support. * View our Factory. * More than 95% of the timely response rate, timely response to customer questions After-Sales Service
* Training how to install the tank, training how to use the filling station. * Engineers available to service equipment overseas.
* Use online contact methods such as skype whatsapp wechat to provide online services to customers. Certification
Product Categories Company Profile Taian Shengding Metal Container Manufacturing Co., Ltd, the professional oil tanks and mobile fuel stations manufacturer in China. Our products are widely used in storage system, refueling system, mining industry, energy industry and so on. We can offer you the high quality products with the competitive price. Our products have got ISO9001 certificate. Our main products are as follows: explosion-proof mobile fuel stations, oil storage tanks, underground storage tanks, vertical oil tanks, acid and alkali tanks, water treatment equipment, tank heads, boiler auxiliaries and other special tanks.
FAQ 1. Q: Are you a trade company or manufacturer?
A: We are a professional manufacturer with our own factory.
2. Q: What are your products?
A: Portable fuel station, Containerized fuel station, Oil storage tanks, Underground storage tanks, Oil containers.
3. Q: What is the delivery time of your products?
A: The delivery time of oil storage tank is usually within 30 days, and fuel station is within 50 days. Please contact for details.
4. Q: How about the warranty rules?
A: Our warranty is one year after shipment. Within one year, we will send broken spare parts at our expense upon request if it is proved to be our production defect. In fact, we rarely receive any spare parts request. If the tanks are maintained properly, they can be used for 15-20 years.
5. Q: What documents do you offer?
A: We offer product quality certification issued by the manufacture, tank drawing, GA drawing, operation instructions and calculation sheet etc for each tank.
