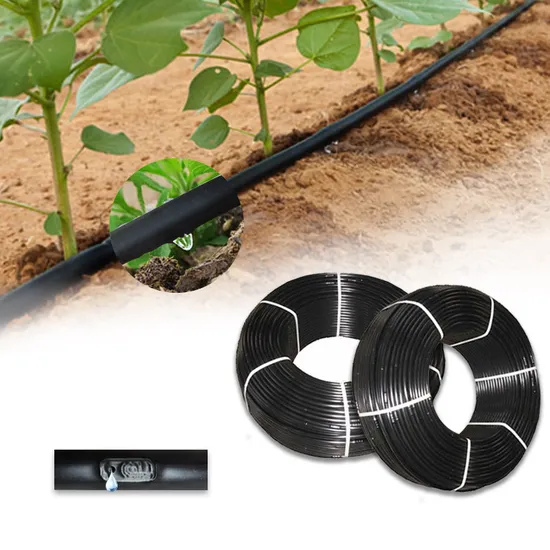

Mountain and Hilly Areas Water Hose PC Pressure Comparison Drip Line

Product Description

Dripline with flat pressure compensating dripper Farm drip irrigation Advantage:
PC100 Dripline produced by extrusion with PC emitter inside directly which save the time for installation
With new type of labyrinth passages,scientific structure, and good quality of silicon diaphragm for high efficient pressure compensatting.
Self-flushing system with wide filtration area of inlet improves resistance to clogging for long life.
Emitter has the function of Anti-siphpon which can prevent the small varia into the channel of emitter,so this PC driptape can be used for SDI.
With superior CV and excellent uniformity for long length of laying run.
Produced by high quality material and advanced technology,better for anti-corrosion and anti-ageing.

labyrinth passages Dripline Application:
Working pressure:0.5-3.5Bar.
Filtration Required:Above 120 mesh.
Lay in line and levelly,all the holes of emitter must be upward.
Suitable for the plaing on hills and mountains,or Sub-surface multi seasonal row crop.
specifications

Product Code	. Diameter	Wall Thickness		Emitter Spacing	Flow Rate (L/H)	Working Pressure (Bar)	Roll Length	Measurement per roll (cm)	Gross weight/roll (kg)	Rolls qty for 1x20feet container	Rolls qty for 1x40HQ container
PRDT0416040200	16mm	0.4mm	15mil	20cm	1.6L/H or 2.0L/H	0.5-3.0	500m	45*45*30	11.32	455	1040
PRDT0416040300				30cm		0.5-3.0			10.68
PRDT0416040400				40cm		0.5-3.0			10.38
PRDT0116040500				50cm		0.5-3.0			10.2
PRDT0416060300	16mm	0.6mm	24mil	30cm		0.5-3.0	500m	80*80*32	15.4	150	341
PRDT0416060400				40cm		0.5-3.0			15.1
PRDT0416060500				50cm		0.5-3.0			14.9
PRDT04160601000				100cm		0.5-3.0			14.5
PRDT0416080200	16mm	0.8mm	32mil	20cm		0.5-3.5	500m	88*88*32	20.7	121	302
PRDT0416080300				30cm		0.5-3.5			20.1
PRDT0416080400				40cm		0.5-3.5			19.8
PRDT0416080500				50cm		0.5-3.5			19.6
PRDT0416100200	16mm	1.0mm	39mil	20cm		0.5-3.5	400m	93*93*32	20.4	108	270
PRDT0416100300				30cm		0.5-3.5			19.8
PRDT0416100400				40cm		0.5-3.5			19.6
PRDT0416100500				50cm		0.5-3.5			19.1

Production standard: ISO 9261:2004 (equal to Chinese standard GB/T19812.2-2017)

China drip irrigation Maximum Length of Run:

Flow Rate:1.6L/H Flat Terrain Flowing Variation 10%
Inlet Pressure(Bar)	Spacing Between Emitters(cm)VS Length Run(m)
	20	30	40	50	100
1.0	60	90	120	140	240
1.5	80	110	140	170	300
2.0	90	130	160	195	330
2.5	100	140	175	215	375
3.0	110	150	190	230	410

Flow Rate:2.0L/H Flat Terrain Flowing Variation 10%
Inlet Pressure(Bar)	Spacing Between Emitters(cm)VSLength Run(m)
	20	30	40	50	100
1.0	55	80	100	120	200
1.5	70	95	125	150	250
2.0	80	110	140	170	285
2.5	85	120	155	185	320
3.0	90	130	165	200	345

The main products of PLENTIRAIN is drip irrigation system products, such as drip tape with continuous labyrinth(A-TAPE), dripline with flat dripper(I-DROP), dripline with cylindrical dripper(D-LINE), dripline with flat pressure compensating dripper(I-DROP PC), online dripper, arrow dripper, drip irrigation accessories, main line, screen & disc filter, venturi fertilizer injector, and electric valve. We also supply mini sprinkler irrigation, such as micro spray tape, standing-up type micro sprinkler and hang-down type micro sprinkler.
Plentirain irrigation products are suitable for vegetable farm, row crop farm, vineyard, orchard, and greenhouse etc.
