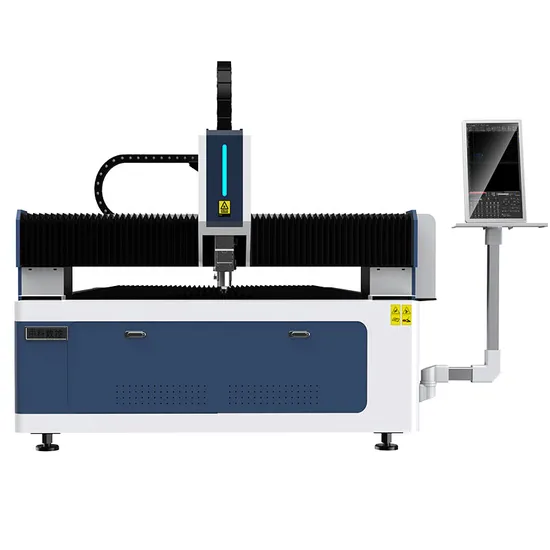

Mild Steel CNC Fiber Laser Cutting Machine for Aluminum Copper Steel Cutting

Product Description

Product Description
(1) High precision, fast speed, narrow cutting seam, minimum heat affected zone, smooth cutting surface without burrs.
(2) The laser cutting head will not come into contact with the material surface and will not scratch the workpiece.
(3) The narrowest cutting seam, the smallest heat affected zone, minimal local deformation of the workpiece, and no mechanical deformation.
(4) Good processing flexibility, can process any shape, and can also cut pipes and other irregular materials.
(5) It can perform deformation free cutting on materials of any hardness, such as steel plates, stainless steel, aluminum alloy plates, hard alloys, etc.
Detailed Photos
Thick steel welded bed structure , with teeth shape knife table for supporting the metal sheet
JIAQIANG raytools brand laser head with auto focus function
Raycus laser source (1000 1500 2000 3000 6000W etc, optioal)
BSC100 height controller
CYPCUT control system with DSP
water chiller for cooling fiber laser source
Japanese FUJI servo motor and driver
Cutting samples, steel cutting
You can choose the outlook you like, or if you have your own outlook, also can send it to me, we can customize it for you.
Application
Fiber laser cutting machines are widely used across a variety of industries for cutting and engraving a range of materials such as metals, plastics, and even fabrics. They offer precision, speed, and efficiency in cutting through thick and thin materials alike. The applications of fiber laser cutting machines include:
1. Manufacturing: Used for cutting and shaping metals including steel, aluminum, brass, and copper.
2. Automotive industry: Used for cutting and shaping parts such as car doors, dashboards, and chassis.
3. Aerospace industry: Used for cutting and shaping components such as aircraft wings, fuselage panels, and turbine blades.
4. Jewelry making: Used for precision cutting and engraving of precious metals such as gold and silver.
5. Textile industry: Used for cutting and engraving fabrics for apparel, upholstery, and home decor.
Fiber laser cutting machines have revolutionized the manufacturing industry, enabling faster and more precise cutting and shaping of materials.

Our Advantages
Fiber laser cutting machines are the latest technology in the cutting industry. These machines use fiber optic technology to generate high-intensity laser beams that are used to cut through various materials with precision. The following are some of the key characteristics of fiber laser cutting machines.
1. Speed: Fiber laser cutting machines are incredibly fast and can cut through materials at high speeds.
2. Accurate and precise: These machines are known for their high precision and accuracy, ensuring fine cuts even on complex shapes.
3. Low maintenance: Fiber laser cutting machines require minimal maintenance as the fiber laser source has a long lifespan.
4. Versatile: With the ability to cut a wide range of materials including metals, plastics, wood, and more, fiber laser cutting machines are incredibly versatile.
5. Cost-efficient: These machines use less energy and have lower operating costs than traditional cutting machines, making them a cost-efficient option for businesses looking to cut down on expenses.
Specification

Model	ZK-3015F
Working area	3000*1500mm
Machine body	Plate welder, Single table, All in one style
laser type	Fiber laser generator
Laser power	1500w 2000w 3000W
Applicable material	metal sheet
Position accuracy of X&Y axis	±0.03mm/1000mm
Reposition accuracy of X&Y axis	±0.02mm/1000mm
Maximum working speed	100m/min
Maximum accelerated speed	1.0G
Z axis travel	150mm
Transmission system	Gantry Double-drive structure
CNC or not	Yes
Graphic format supported	CAD. DXF (etc)
Power supply	380V, three-phase source
Frequency	50Hz

Sample photos
Machine photos
Industrial plug, with auto oil lubricating system Control cabinet with drivers, height controller, electric parts feeding material wheels, knife table


Customizable fully enclosed structure extended fiber laser cutting machine
Rotary attachment, used for steel pipe cutting, also can be used for flat steel, so this is a double using fiber laser cutting machine
Professional pipe cutting machine, can be used for cutting square pipe and round pipe
