Complete Automatic Pet Bottle Unscrambler Machine with High Quality

Product Description

Machine technical

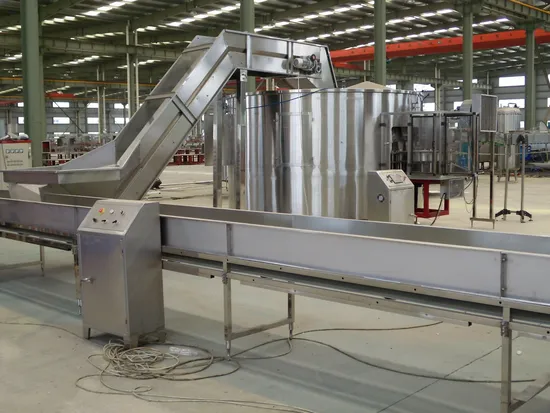

LPJ-400 automatic bottle-unscrambler, as supplement equipment for soft drink filling equipment, is used to make the random PET bottles orderly to be fed to the production line. It is flexible so as to meet different bottle shape requirements from customers. It adopts a new unscrambling structure which makes the abrasion of bottle minimum. The main frame is made of excellent stainless steel and other materials are safe and durable. For electrical and pneumatic systems many elements of big brands are employed. PLC is in charge of all the working processes, thus the equipment is reliable and of low failure rate.

Main technical parameters
Type: LPJ-400
Capacity:18000b/h
Suitable bottle: Φ50-Φ90mm, height170-340mm
Compressed air: 0.8MPa
Air consumption: 0.8m3/min.
Main machine power: 3.75kw
Size: 4500*3500*2300mm
Weight: about 4500kg

Working Process and Structure
1)Working process
Bottle warehouse Bottle hopper Bottle unscramble Star wheel for bottle-out Air channel.
PET bottles from ware house are manually put into the Bottle hopper of the bottle-elevator, then by belt-lifting go to the cylinder-like bottle-unscrambler, where the bottles are unscrambled , then the bottles in good order are pushed by the star wheel to the air channel and further to the belt conveyor. All are PLC controlled.
2) Structure
a) Bottle-elevator
Consisting of Hopper, Belt and Frame, the elevator's motor is controlled by the one sensor for inspecting the bottle-loading inside the unscrambler

b) Bottle-unscrambling part
Consisting of main body, bottle hanger and star wheel for bottle-out, its main body passes the bottles to bottle hanger, and bottle hanger inverts the bottles, and passes them to the star wheel and further to the air channel. Starting of Main body is automatic-controlled by checking of the bottle quantity on air channel.
