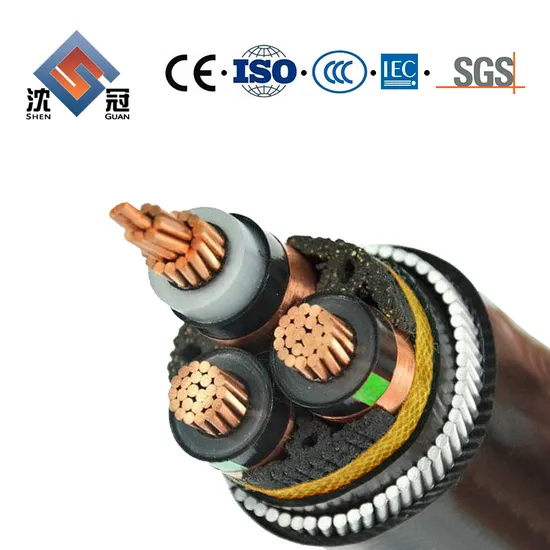

Shenguan Copper Power XLPE/PVC Insulated 4 Core 25mm 70mm 16mm Swa Armoured Electrical Low Voltage Power Cable Underground Cable

Product Description

Product Description
Detailed Photos
Product Parameters
TOP TEN CABLE MANUFACTURER/EXPORTER IN CHINA
ANNUAL EXPORT VOLUME EXCEED 200MILLION USD
WITH UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD'S,GL,NK,KR,ABS PRODUCTS CERTIFICATIONS
WITH TUV TYPE TESTING REPORT
WIDE PRODUCTS RANGE
ISO9001,ISO18001,OHSAS18001 SYSTEM CERTIFICATIONS
CNAS APPROVAL LABROTARY
Type and name:

Type	Designation	Applications
YJV	Copper conductor,XLPE insulated,PVC sheathed power cable	For laying indoors,in tunnel or cable trench,unable to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct.
YJLV	Aluminum conductor,XLPE insulated,PVC sheathed power cable
YJY	Copper conductor, XLPE insulated,PE sheathed power cable
YJLY	Aluminum conductor, XLPE insulated,PE sheathed power cable
YJV22	Copper conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable	For laying indoors,in tunnel in cable trench,or direct in ground,able to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct.
YJLV22	Aluminum conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable
YJV23	Copper conductor,XLPE insulated,steel tape armoured,PE sheathed power cable
YJLV23	Aluminum conductor,XLPE insulated,steel tape armoured,PE sheathed power cable
YJV32	Copper conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable	For laying indoors,in tunnel cable trench,well or direct in ground,able to bear external mechanical forces and certain pulling force.
YJLV32	Aluminum conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable
YJV33	Copper conductor,XLPE insulated,steel wire armoured,PE sheathed power cable
YJLV33	Aluminum conductor,XLPE insulated,steel wire armoured,PE sheathed power cable

2×1	0.6	0.8	5. 9 or 3. 9×6. 2	7. 5 or 4. 7×7. 5	0.01
2×1. 5	0.7	0.8	6.8	8.6	0.01
2×2. 5	0.8	1	8.1	10.6	0.009
3×0. 75	0.6	0.8	6	7.6	0. on
3×1	0.6	0.8	6.3	8	0.01
3×1. 5	0.7	0.9	7.4	9. I	0.01
3×2. 5	0.8	1.1	9.2	11.4	0.009
4×0. 75	0.6	0.8	6.6	8.3	0.011
4×1	0.6	0.9	7.1	9	0.01
4×1. 5	0.7	1	8.4	10.5	0.01
4×2. 5	0.8	1.1	10.1	12.5	0.009
5×0. 75	0.6	0.9	7.4	9.3	0.011
5×1	0.6	0.9	7.8	9.8	0.01
5×1. 5	0.7	1.1	9.3	11.6	0.01
5×2. 5	0.8	1.2	11.2	13.9	0.009

FAQ
Q:Can you send samples?
A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.
Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q:What are the shipping ports?
A:Under normal circumstances, we ship from shengyang, Ningbo ports, you can choose other ports according to your needs.
Q:About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials.
Q:What are the certifications for your products?
A:We have ISO 9001, SGS, EWC and other certifications.
Q:How long does your delivery time take?
A:In general, our delivery time is within 7-30days, and may be delayed if the demand is extremely large or special circumstances occur.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory. However, some of the plants are not open to the public.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.
Q:How to pack the products?
A:The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.
Q:What is your working time?
A:In general, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry during the next working day.
