Slant-Bed Line-Rail CNC Lathe Ck36D/Ck40d

Product Description

Details

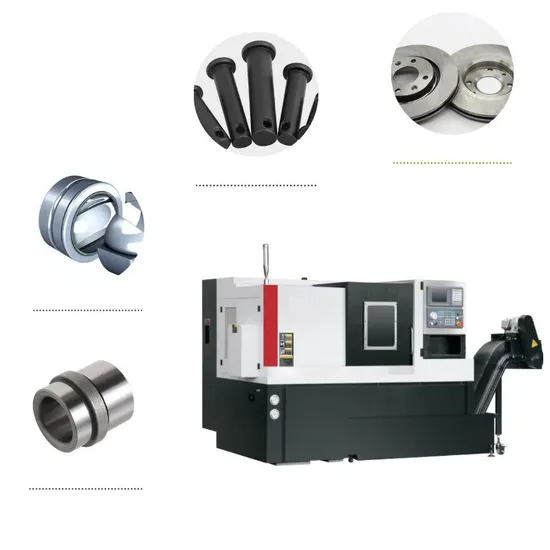

Slant-bed line-rail CNC lathe CK36D/CK40DDetails
Secificities:
The bed body Slant-bed line-rail CNC lathe, and The guideway is line rail.
Tool holder form for row knife type.
Specification:

Model No.
Item No.	CK-36D	CK-40D
Specifications
Max.Swing over bed	360 mm	360 mm
Max. rotary diameter through the slide	150mm	102mm
Max. cutting diameter	200 mm	250 mm
Max. Working Length	300mm	320mm
Bed structure
Bed structure	30°Integrated Slant bed	30°Integrated Slant bed
X/Z -axis travel	300/350mm	400/350mm
X / Z axis screw / X / Z line rail	3210/30mm	3210/3535mm
X/Z axis rapid traverse	20/20m/min	20/20m/min
SPINDLE
Spindle head model	A2-5	A2-5
Main spindle through-hole diameter	Ø52mm	Ø56mm
Max.Through the diameter of the bar material	Ø38mm	Ø45mm
Max.Spindle speeds	4000r/min	4000r/min
Spindle motor power	5.5kw	5.5kw
Tool holder
Tool holder	row of knives	row of knives
Tool size (turning/boring)	20x20Ø25mm	20x20Ø25mm
Other
Repeat positioning	±0.003mm	±0.006mm
	±0.003mm	±0.005mm
Volume (LxWxH)	1900*1350*1600mm	1900*1350*1600mm
Power supply	15kva	15kva
Total weight	1800kg	1800kg

Standard Accessories	Optional Accessories
YJS-988TDi control system	CNC system:GSK, Xindai, KND, FANUC
Alpha same service motor	Alpha 5.5KW servo main motor
Integrated Slant bed
Screw line rail
row of knives
No tail seat
Hydraulic Collet

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
