Fs-Fhss 16 Channels Simultaneous Interpretation for International Meeting with Ce

Product Description

Provide 2% discount

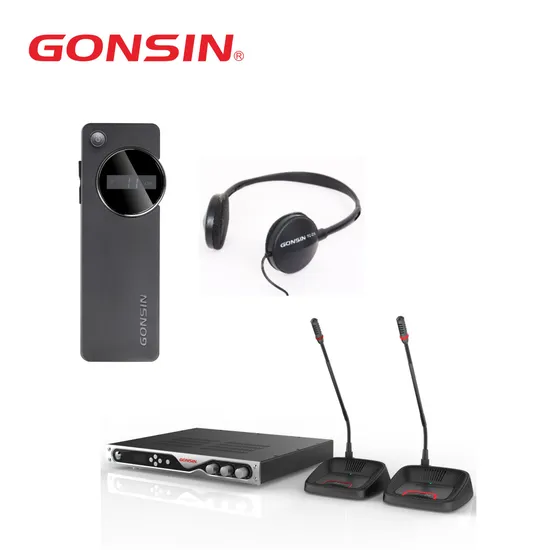

FS-FHSS Wireless Simultaneous Interpretation System
FS-FHSS wireless simultaneous interpretation system utilize digital wireless communication and Gonsin innovated FS-FHSS( Frequency Selecting - Frequency Hopping Spread Spectrum) technology. It comes with super-strong anti-interference capability and broad bandwidth, provides perfect CD-level audio quality, and utilizes AES technique to encrypt data. Effective communication distance is 50~500m. Signals can be transmitted out in all directions. Eight channel is configured with one antenna unit, which reduces deployment difficulty and saves system investment. The system is able to modulate and transmit up to 16 channels at the same time, allowing participants to select a channel to hear the required language so long as he/she has a handheld or headset receiver.
* FS-FHSS( Frequency Selection -Frequency Hopping Spread Spectrum) technology:Frequency hopping communication technology is a common spread spectrum communication technology which is widely applied to various wireless communication fields. GONSIN has developed the unique FS-FHSS based on this communication technology. The new technology can monitor and select the undisturbed frequency band. FS-FHSS
ensures the stability of the communication. It is applied to GONSIN wireless conference system, which implements the discussion, simultaneous interpretation, voting and others comprehensive conference application functions.
Features
♦ Gonsin innovated FS-FHSS (Frequency Selecting-Frequency Hopping Spread Spectrum) technology
♦ Highly flexible for conference places, suits various conference places including outdoor/ indoor/ temporary/fixed conference place
♦ AES for data encryption, preventing malicious interference and listening
♦ Super-strong anti-interference capability, being immune to any light source, wireless communication equipment, and signal jammer
♦ Adjustable transmission power, the effective communication distance could reach from 50m to 500m.
♦Unlimited system capacity within the effective transmission scope, suitable for small/medium/large/super-large conferences
♦ All-direction transmission, allowing participants to move within the effective transmission scope
♦ Max number of simultaneous interpretation channels in one system: 8; in support of cascading, max number of simultaneous interpretation channels: 16
♦ Simultaneous interpretation server GONSIN30000I could be connected to DCS-3021 wireless discussion terminal to extend conference discussion function.
♦ One system just requires one wireless access point, which makes the deployment simple and applicable.
Wireless Simultaneous Interpretation Receiver TC-FSJ04B/08B/12B/16B
Basic functions
♦ GONSIN innovated FS-FHSS technology
♦ CD-level sound quality
♦ HOST ID setting by manually or automatic upgrading, support Auto-tracking by Host ID
♦ Support up to 16 channels( max.1 floor+15 interpretation audio)
♦ LED display, human-oriented human-machine interaction
♦ Lithium battery/AAA battery
♦ Real-time battery level detection and display, low battery alarm
♦ Grouping (encryption) function; max number of groups: 255; no interference between the groups
♦ Dynamic display of such information as signal strength, battery capacity, and selected channel on the OLED screen
♦ Signal received from all directions
♦ Support unified shut-down function, reduce workload greatly
♦ Lightweight receiver; in combination with a headphone to allow users to hear an interpreter
♦ Max number of channels: 16; Four models optional:4/8/12/16 channels
♦ Clear voice along different independent channels
♦ Volume and audio channel is adjustable by key pressing
♦ Low power consumption, allowing battery to consecutively run for 16 hours
♦ Automatic turn-off function when no signal is receiving for 10 minutes, unified server shutdown function;
♦ Earphone detection, receivers will auto shut-down if without earphone after 2 minutes
♦ Number of receivers within the signal coverage area is unlimited;
♦ Allow users to move within the signal coverage area
♦ Earphone (single- or double-side) and headphone for selection
♦ Centralized charging by the charging case, 60 receivers can be charged by one charing case.
Technical Parameters

Modulation mode	FS-FHSS technology
Frequency range	2.4-2.5GHz
Encryption method	AES
System Max capacity	Unlimited receivers within signal distance
Grouping function	up to 255 groups
Sensitivity	-121dBm
Earphone jack	3.5mm jack stereo
OLED screen	35×10mm
Battery display	real-time display, low power alarm
Battery	lithium battery/ 2 AA batteries
Battery service time	16 hours( different AA batteries have different results)
Package	portable aluminum case
Dimension( L×W×H)	136×50×21mm
Weight	136g (with a lithium batterty) 94g (without battery)
Working temperature	0~45°C
Storage temperature	-20~50°C
