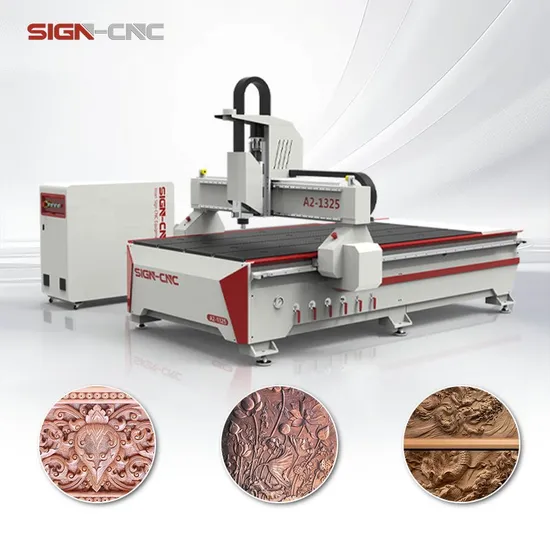

Factory Price 3D Carving Machine with 3 Axis CNC Router Machine Servo Motor Woodworking

Product Description

Product Description
Factory Price 3d carving machine with 3 axis cnc router Machine Servo Motor Woodworking
Application
Advertising industry: advertising signs, logo making, acrylic cutting, plastic molding, a variety of materials advertising the production of decorative products.Woodworking: Furniture production, three-dimensional wave board processing, cabinet doors, solid wood doors, wooden craft, paint doors, screens, craft fan window processing, shoe polisher, game cabinets and panels, mahjong table, computer desk and furniture products, auxiliary processing .Mold Industry: engraving copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wood and other non-metallic mold.Other Industry: a variety of large-scale relief sculpture, shadow carving, widely used in the craft industry
Technical Parameters

Model	A2-1325-Pro
X, Y Working size	1300*2500mm
Z feed Height	300mm
Table Surface	Aluminum profile T-slot table with PVC protection
X, Y Structure	Helical rack and high precision 25mm Square Guide Rail
Z Structure	High precision 25mm Square Guide Rail and Ball Screw
Max. Power Consumption	(Without spindle) 3.0Kw
Max. Rapid Travel Rate	35000mm/min

Max. Working Speed	20000mm/min
Spindle Power	HQD 9KW Air-cooled spindle
Spindle Speed	0-24000RPM
Drive Motors	750w AC servo motor and driver
Inverter	Folinn 11KW high frequency inverter
Working Voltage	AC380V/50/60Hz
Reducer	Japanese Shimpo planetary reducer
Command Language	G code
Control System	DSP B11
X,Y,Z repositioning Accuracy	±0.05mm

X,Y Resolution	<0.05mm
Software	Artcam with post processor
Running Temperature	0 degree - 45 degree
Relative Humidity	30% - 75%

Packaging & Shipping
FAQ
1. Q: How do you send your machine?
A: We can send our machines by sea, land and rail way, or we can send the machine to your doors.
2. Q: This is my first time to use this machine, is it easy to operate?
A: Machine operate is easy and we will send to you manual for system manual in English. And if you have question for use it we also can send to you video that show how to use machine.
