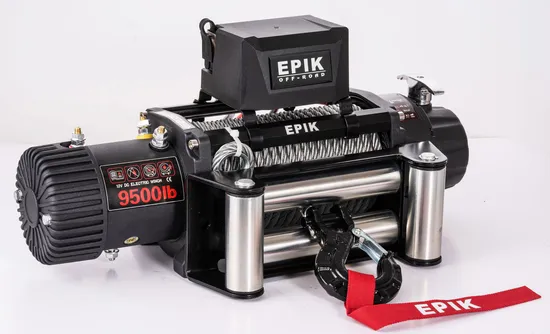

12V 9500lbs Winch OEM 4X4 Wholesale 9500lbs with Wire Rope

Product Description

SPECIFICATION:

SPECIFICATION:
Line Pull	9,500lbs/4,309kgs
Motor	5.2HP Sealed Series Wound
Gear Train	3-stage planetary
Gear Ratio	216:1 or 150:1
Brake	Automatic, 100% load holding
Clutch	Rotate 180 degrees
Solenoid	400A Sealed
Electric cables	23mm2, 40cm x 3pc, 180cm x 2pc
Wired Controller	3pin, 3.7m
Wireless Remote	Included
Rope	Wire Rope, 9.5mm×26m
Fairlead	4 way roller fairlead

LINE PULL

Layer of Wire Rope	Max Line Pull
1	9,500lbs/4,309kgs
2	8,432lbs/3,825kgs
3	7,640lbs/3,465kgs
4	7,086lbs/3,214kgs

LINE SPEED AND AMP DRAW (1st layer of rope on the drum)

Load	Line Speed	AMP Draw(12V)
No Load	30.2FPM/9.2MPM	75
2,000lbs/1,814kgs	20.7FPM/6.3MPM	95
4,000lbs/2,721kgs	18.0FPM/5.5MPM	195
6,000lbs/3,628kgs	13.8FPM/4.2MPM	240
8,000lbs/4,536kgs	10.2FPM/3.1MPM	291
9,500lbs/6,124kgs	7.9FPM/2.4MPM	325

DIMENSIONS
534 x 163 x 168mm (21.1" x 6.3" x 6.6")
STANDARD ACCESSORIES
Controller
Wire Rope with Hook
4 Way Roller Fairlead
Control Unit
Mounting Hardware
Hand-saver Strap
PACKAGE
Winch Weight: 36kgs/79.4lbs
Gross Weight: 38kgs/83.3lbs
Box Dimension: 610×340×260 mm (24.0"×13.4"×10.2")
FEATURES:
-20% higher loading test than rated line pull.
-Heavy duty series wound motor delivers superior torque output and faster line speed.
-3-stage planetary gearbox delivers the most reliable and durable performance.
-Automatic brake in the drum provide powerful braking.
-Rotating ring gear clutch for the rapid rolling out of rope with ease.
-Installation, operation and maintenance with ease.
-Much lower working noise.
-Waterproof IP67 certification.
-CE, RoHS certification.
FAQ:
1, Are you Factory or Trading Company?
We are manufacturer of WINCHES and SHOCKS. For other products, we trade with reasonable prices and good post-sales service.
We have over 10 years experiences in 4x4 industry and new products are developed continuously.
2, What is your Product Line?
Besides winches and shocks, we also supply a wide range of 4x4 accessories and outdoors like bumpers, roof racks, snorkels, compressors, wheel hubs, lift jacks, pintle hooks, camping chairs, seat covers, vehicle lighting, work lighting.
3, How is your Quality?
For our factory, we launch ISO9001 Quality Management System. And all goods will be FULLY inspected before delivery. For other products not produced by us, we send our QA and QC team to inspect the goods during production and before delivery to make sure they are made strictly according to our Contract and Quality Standards.
4, How is your Product Postioning?
Mainly we focus on medium level and reliable products. But we are able to supply good quality products with factory level prices. Your inquiries are always welcome.
5, What is you Minimum Order Quantity?
Different products have different MOQ. We accept small quantity for those we have stock. And we accept sample orders for you to test our products.
6, What are your Payment Terms?
For sample order, 100% advance payment is needed.
For bulk orders, 30% deposit is need before production or preparation. Balance shall be paid before shipment. We accept payment by T/T, LC, Paypal, West Union, Credit Card, etc.
7, What is your Delivery Time?
For sample order, our delivery time normally is 3-7 days.
For bulk order, our delivery time normally is 15-40 days.
8, What is your Warranty and its procedure?
For all products, we provide 1-5 years warranty.
For warranty claim, please advise when and how it happens and send us the pictures or videos for our analysis.
OUR MISSON:
Gear Up & Enjoy Extreme Off-roading
OUR VISION:
Becoming China's Top Winch Manufacturer and 4WD Solutions Provider
OUR VALUE:
Client's Satisfaction Comes First.
WE ARE DEDICATED TO WINCH MANUFACTURING AND 4WD SOLUTIONS
NINGBO CONQUEROR INDUSTRY CO.,LTD, designs and manufactures high quality electric winches and worm gear winches which are widely used in off-road vehicles, fire engines, industrial and commercial applications. Besides, we also supply reliable and durable 4x4 accessories like bull bars, rear bars, roof racks, roof tents, shock absorbers, air lockers, fender flares, snorkels, lift jacks, camp chair and other 4x4 accessories for off-road and outdoor.
We are an ISO certified organization and our products are certified with CE, RoHS. Now, our products have been exported to over 50 countries in the US, Europe, Russia, Asia, Australia, South America and Africa. Due to our good quality and competitive prices, we have gained high praise and good reputation from our clients.
Our company consists of a team of passionate people who have over 10 years' experience and profession in off-road industry. With concentration on products and good knowledge, we are always capable of providing the proper products to meet your requirement. Compared with other players, we are the most integrate supplier with profession, rich experiences, excellent communication skills and strong flexibility to shoot all problems. We sincerely hope we can help you if you need anything of 4x4 accessories.
Besides, we can provide OEM and ODM service to help you build your brand and expand your market. We always welcome new and existing clients to contact us or visit us for business cooperation.
