Factory sell taper candle machine/ spiral candle making machine/ machine for pillar candles

Product Description

Product Description
Factory sell taper candle machine/ spiral candle making machine/ machine for pillar candles
Candles making process:
1. Put the raw material of paraffin wax pot to wax melting machine.
2. In the candle wick into candle machine mould.
3. Pour the melted paraffin oil into the candle machine mold.
4. After cooling, take out the finished candles from candle machine mold.
5. To carry on the exterior decoration, finishing packaging products.
1. Wax melting machine
1.Wax melting machine consists of three layer (inner stainless steel board, heat-conducting layer and insulating course),
2.Electric hot tube heating the conduction oil and melt paraffin wax with the heat of conduction oil. Change the solid wax into liquid wax before making the candle.
3.There are temperature controller, indicator light, AC contactor and wax temperature sensor or temperature automation.

Model	Volume (kg)	Voltage (v)	Motor (kw)	Inside size (cm)	Dimension(cm)	Weight (kg)
JXR-50	50	380/220	6	50×38×44	92×65×78	110
JXR-100	100	380/220	8	75×45×48	117×70×83	145
JXR-150	150	380/220	9	90×49×50	140×74×85	160
JXR-200	200	380/220	10	100×55×60	151×75×87	185

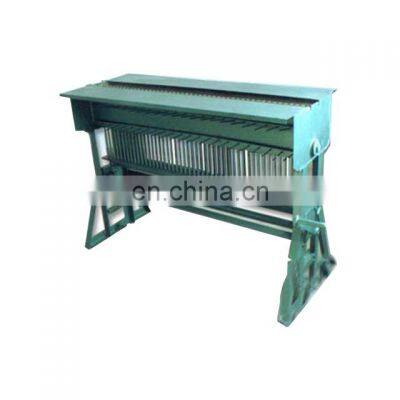

2. taper candle machine/ spiral candle making machine/ machine for pillar candles
1.We usually manufacture candle machine according to our customers’s requirement,
these years mainly produce 2 lines to 10 lines wax models tube.
2.The candle with the mold clamp unit clamp wax in aluminum alloy plate.
3.The machine province labor, high efficiency, skilled workers each operation 4 -8 sets of candle machine at the same time.
4.The candle machineclamp unit choose aluminum alloy manufacture, wax models tube using
seamless stainless steel tube after strench forming, polishing refined but become, have the best surface finish, anti-corrosive, cooling fast, good sealing performance

Model	Capacity	One piece candle weight	The dia. Of candle	Weight
JX-2-A	56pcs/time 300-350pcs/h	5-100g	8-28mm	85kg
JX-2-B	80pcs/time 550-600pcs/h	5-100g	8-28mm	96kg
JX-4-B	160pcs/time 950-1000pcs/h	5-100g	8-28mm	150kg
JX-6-C	240pcs/time 1200-1400pcs/h	5-100g	8-28mm	200kg
JX-10-D	400pcs/time 1800-2400pcs/h	5-100g	8-28mm	220kg

My friend, if you have any special requirement about our wax melting machines, taper candle machine/ spiral candle making machine/ machine for pillar candles, pls tell us, we welcome
you and manufacture machines according to your required.
