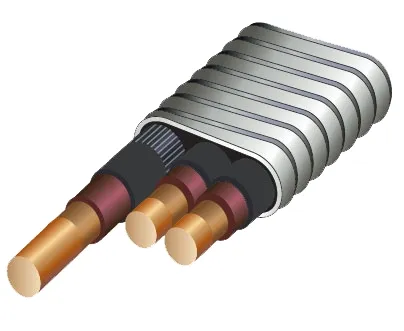

Esp Pump Oil Well Underground Armoured Power Cables

Product Description

Product Description:
EPDM insulation, Inner lead sheath, Fluoropolymer tape applied with an overlap over the lead sheath, Synthetic braid covering completely over the lead sheath, Full galvanized steel (or stainless steel or Monel) tape armour.
Performing Criterion:
GB/T16750,IEEE1017.2,IEEE1018,IEEE1019,API RP11S5,API RP11S6
Application Range:
This cable is applicable for use in Electricity Submersible Pump Units with rated voltage less than 3kV or 6kV. The maximum permissible conductor temperature is 205ºC(400ºF). The cable has the excellent ability of oil-resistance, heat-resistance and corrosion-resistance.

Phase	Cross Section mm2		Conductor Diameter mm		DC Resistance at 20ºC ≤ Ω/km Untinned Tinned					Insulation Thickness mm 3kV 6kV				Jacket Thickness mm 3kV 6kV				Overall Size and Weight 3kV mm ×mm kg/km						6kV				kg/km
																								mm*mm
3	16		1/4.62		1.15			1.16		1.9		2.3		1.0		1.0		13×36			2211			13×38				2410
3	20		1/5.19		0.84			0.86		1.9		2.3		1.0		1.0		14×38			2442			14×40				2730
3	33		1/6.54		0.54			0.56		1.9		2.3		1.0		1.0		15×43			3116			15×45				3320
3	42		1/7.35		0.43			0.44		1.9		2.3		1.0		1.0		16×45			3544			16×47				3850

Cross Section mm2 AWG		Conductor Diameter mm		3kV Insulation Resistance M Ω ·km				3kV Leakage Current at 15.6ºC μA/km/kV					6kV Insulation Resistance M Ω ·km					6kV Leakage Current μA/km/kV						DC Voltage Test For 5 Minutes 3kV 6kV
16 20 33 42	5 4 2 1	4.62 5.19 6.54 7.35		1484 1352 1012 919				0.700 0.775 0.984 1.083					1692 1548 1170 1063					0.607 0.656 27KV 35KV 0.853 0.951
