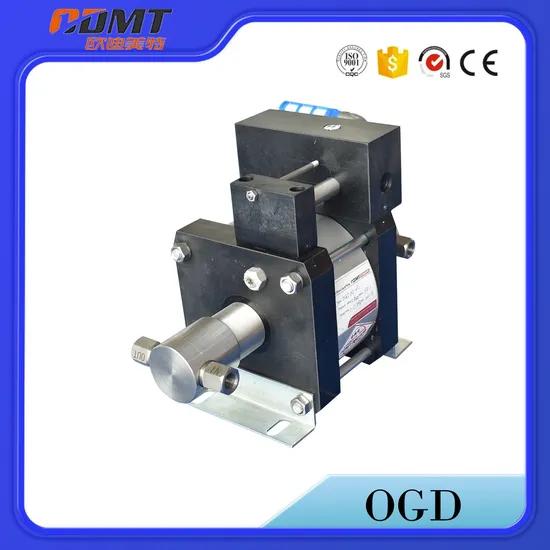

Double Acting Single Air Drive Head Liquid High Pressure Air Driven Pneumatic Hydraulic Booster Pump

Product Description

Product Description
OGD-Series

This series of pump uses single pneumatic non-equilibrium gas distributing valves to move to and fro automatically. The drive parts of the pump are made of aluminum alloy. These parts are treated with oxidation into black to ensure their good-looking appearance and stainless performance.

The fluid contacting parts are made of carbon steel or stainless steel according to different media. The full set of sealing parts is imported, to ensuring pumps' performances. The diameter of drive piston is 100mm. The maximum drive pressure is 10bar. We suggest customers use air pressure≤8bar to ensure long lifespan of the pump.
Product Parameters
OG-Series
This series of pump uses single pneumatic non-equilibrium gas distributing valves to move to and fro automatically. The drive parts of the pump are made of aluminum alloy. These parts are treated with oxidation into black to ensure their good-looking appearance and stainless performance.
The fluid contacting parts are made of carbon steel or stainless steel according to different media. The full set of sealing parts is imported, to ensuring pumps' performances. The diameter of drive piston is 100mm. The maximum drive pressure is 10bar. We suggest customers use air pressure≤8bar to ensure long lifespan of the pump.
OGD Series
OGD series pump is a single-pneumatic double-acting pump withthe same characteristics as M series pump, but compared with OGseries pump of the same specification, its pulse is small and itsflow rate is 50% higher than OG series single-acting pump.

Type	Pressure ratio	Outlet pressure		Flow	Connections			Net weight
		bar	psi	1/Min	Drive port	Inlet	Outlet	KG
OG6	6:1	48	696	27.74	G1/2	G3/4	ZG1/2	12.7
OG10	10:1	80	1160	1 8.5 3	G1/2	G3/4	ZG1/2	12.7
OG16	16:1	128	1856	1 2.86	G1/2	G3/4	ZG1/2	12.7
OG28	28:1	2 24	3248	7.24	G1/2	ZG1/2	ZG3/8	12.2
OG40	40:1	3 20	4640	5.02	G1/2	ZG1/2	ZG3/8	12.2
OG64	64:1	512	7424	3.21	G1/2	ZG1/2	ZG3/8	12.2
OG80	80:1	640	9280	2.44	G1/2	ZG1/2	ZG3/8	12.2
OG100	100:1	800	11600	1.81	G1/2	ZG1/2	M14X1.5	12
OG130	130:1	1040	15080	1.36	G1/2	ZG1/2	M14X1.5	12
OG175	175:1	1400	2030 0	1.14	G1/2	ZG1/2	M14X1.5	12
OG255	255:1	2040	29580	0.77	G1/2	ZG3/8	M14X1.5	12
OG400	400:1	3200	46400	0.51	G1/2	ZG3/8	M14X1.5	12
Type	Pressure ratio	Outlet pressure		Flow	Connections			Net weight
		bar	psi	1/Min	Drive port	Inlet	Outlet	KG
OGD6	6:1	48	696	45.84	G1/2	G3/4	ZG1/2	15.2
OGD10	10:1	80	1160	28.85	G1/2	G3/4	ZG1/2	15.2
OGD16	16:1	128	1856	19.84	G1/2	G3/4	ZG1/2	15.2
OGD28	28:1	224	3248	11.34	G1/2	ZG1/2	ZG3/8	14
OGD40	40:1	320	4640	7.74	G1/2	ZG1/2	ZG3/8	14
OGD64	64:1	512	7424	5.04	G1/2	ZG1/2	ZG3/8	14
OGD80	80:1	640	9280	3.79	G1/2	ZG1/2	ZG3/8	14
OGD100	100:1	800	11600	2.78	G 1/2	ZG 1/2	M14X1.5	13.8
OGD130	130:1	1040	15080	2.31	G 1/2	ZG 1/2	M14X1.5	13.8
OGD175	175:1	1400	20300	1.98	G 1/2	ZG 1/2	M14X1.5	13.8
OGD255	255:1	2040	29580	1.23	G 1/2	ZG 3/8	M14X1.5	13.8
OGD400	400:1	3200	46400	0.8	G 1/2	ZG 3/8	M14X1.5	13.8

*The above flow is reached when the drive air pressure is 6bar.
* Pressure ratio is driven surface/driving surface.
*Static outlet pressure (calculated and maximum allowed)at an air drive pressure of 8 bar (116 psi).
*The minimum air drive pressure to start the pump is 3bar (43.5 psi). Depending on the pressure ratio a special outlet pressure can be reached.
OG Features
single acting
Single pneumatic head
Pressure reaches 320MPa
Seal material for oil-filled liquid pump: Ordering code: OG40-OL
Sealing material for water-filled liquid pump: Ordering code: OG40-WL
Special inlets and outlets, e.g. NPT: Order code: OG40-OL-NPT
Other options available on request
Dimensions:293*172*273mm
OGD Features
double acting
Single pneumatic head
Pressure reaches 320MPa
Seal material for oil-filled liquid pump: Ordering code: OGD40-OL
Sealing material for water-filled liquid pump: Ordering code: OGD40-WL
Special inlets and outlets, e.g. NPT: Order code: OGD40-OL-NPT
Other options available on request
Dimensions:380*172*273mm
