Diesel Concrete Mixing Pump Factory Supplied Mini Concrete Mixer Pump Concrete Vibrator

Product Description

Product Description

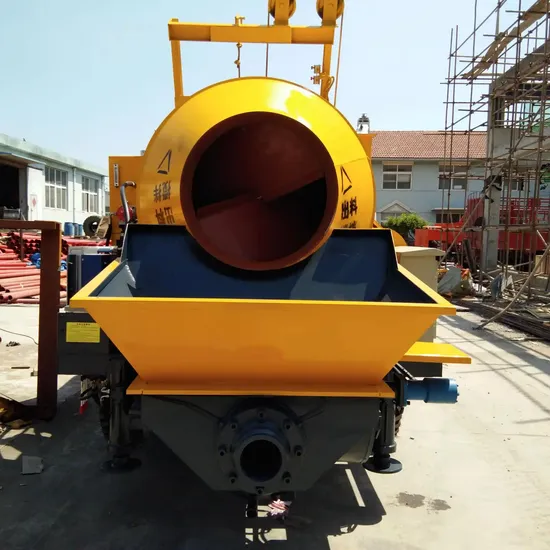

Diesel mixing integrated conveying pump
Concrete mixing and pumping integrated machine is a small concrete conveying pump that adopts a fully automated construction operation system, integrating feeding, mixing, and high-pressure pumping. It can achieve on-site mixing and continuous pumping, greatly improving construction efficiency.
Suit for:
1, Transporting large aggregate concrete such as foundation pile driving, including rural civil construction, township and new rural construction, and 2,various tunnel constructions such as highways and railways;
3,Water conservancy and hydropower engineering; Geological hazard slope management;
4,Construction characteristics such as large concrete pouring volume or narrow space for basic irrigation
Product Parameters

Items		Units	Parameters
			JBS40R
Whole performance of machine	Max. theo. concrete output	m3/h	40
	Rated feeding capacity of the mixerRated feeding capacity of the mixer	m3	0.56
	Rated discharge capacity of the mixer	m3	0.45
	Max.concrete pumping pressure	MPa	10
	Distribution valve type		S S Valve
	Concrete cylinder diameter×stroke ×	mm	Ф180×1000
	Hopper capacity	L	550
	Outlet diameter	mm	Ф150
Power system
	Rated power	kW	78KW
	Rotate speed	r/min	2200
Hydraulic system	Circuit type		Open circuit
	Pumping system pressure	MPa	31.5
	Mixing system pressure	MPa	6
	Capacity of oil tank	L	370
	The biggest transportation is away from vertically (/Level) /	m	150/600
Other parameters	Max.aggregate diameter	mm	Scree: 40 50
	Inside diameter of delivering pipe	mm	Ф125
	Main hydraulic pump		KawasakiK3V112

Packaging & Shipping

Company Profile
About us
The Feibo industry, a sourcing factory on construction machinery found in 2012, located in Hunan, Changsha city.
Have passed the ISO9001:2008, TSI16949 certificate ,CE , and so on.
Professional supply for mechanical equipment, Concrete pump, pump truck, fabric machine and some auto parts, accessories and so on, for more than 10 years.
Strict QC team over 10 members, covering whole stages of production running.

SPARE PARTS
Certifications

Our Advantages
FAQ
1. who are we?We are based in Hunan, China, start from 2012,sell to North America(15.00%),Southeast Asia(14.00%),Mid East(13.00%),South America(12.00%),Africa(11.00%),Eastern Asia(10.00%),Eastern Europe(9.00%),Central America(9.00%),South Asia(3.00%),Northern Europe(2.00%),Oceania(1.00%),Western Europe(1.00%). There are total about 101-200 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us? construction machine, concrete pumps, concrete pump truck, digging machine, used concrete pump truck, garden machine and so on4. why should you buy from us not from other suppliers?1. Strong production capacity: large-scale production. 2. Leading technology: Product performance and quality are competitive. 3. Rich experience: Provide professional solutions and customized products.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
