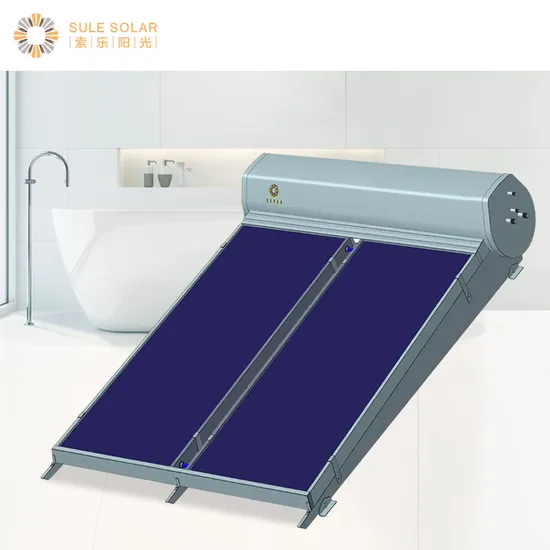

High Quality Pressurized Compact Flat Plate Solar Water Heater Water Heater System with Cooper Coil for Home and Large Hot Water Heating Project
Basic Info.
Model NO.
PFSLP-215-4.0/0
Max. Capacity
>200L
Structure
Compact Type
Pressure
Pressurized
Interior Material
Stainless Steel
Collector Components
Flat-plate
Composition
Tank Insulation
Certification
CE, ISO9001, CCC, Epr
Outer Tank
Color Galvanized Steel
Inner Tank
Stainless Steel 304
Insulation
50mm Polyurethane Foam
Frame
Galvanized Steel, Stainless Steel, Aluminum Alloy
Color
Black, Grey
Power
Solar
Backup Source
Gas Boiler, Electricity
Transport Package
Pallet, Wooden Case, Box, Carton
Specification
1.9 CBM
Trademark
SULE SOLAR
Origin
Beijng, China
HS Code
8419120000
Production Capacity
10000
Product Description
High Quality Pressurized Compact Flat Plate Solar Water Heater Water Heater System with Cooper Coil for home and large hot water heating project Product Details| Product name | 215L Flat plate solar water heater |
| Model 1 (Non-freeze 0ºC ) | PFSLP-215/4.0/0 |
| Model 2 (Antifreeze -20ºC ) | PFSLP-215/4.0/-20 |
| Types of solar water heaters | Pressurized |
| Collector | Non freeze and antifreeze Flat plate collector |
| Absorber surface | Whole board blue film |
| Core runner | copper pipe |
| Collector Specifications | 1000*2000*80mm |
| Number of collectors | 2 pieces |
| Frame material | 6063-T5 aluminum alloy |
| Inner tank material | 0.5 mm SUS304 stainless steel |
| Inner tank diameter | Φ360mm ("D" type) |
| Outer tank material | 0.4 mm color galvanized steel plate |
| Outer tank size | Φ460mm ("D" type) |
| Insulation material | 50mm flame retardant polyurethane foam |
| Heat exchanger Material | 316l stainless steel, 0.3mm thickness |
| Cold/hot water port connection | DN20/DN25 |
| Product Weight | 130kg |
| Requirements for roof loads | 100 kg/m² |
| Aperture area | 4.0 m² |
| Water tank capacity | 215L |
| Weight full | 345kg |
| Product Size | Length B (mm) 2630 |
| Width A (mm) 2370 | |
| collector inclination | 5°~30° |
| Min. outdoor temperature | 0ºC and -20 ºC |
| Electric heating (option) | 1 pc, 220V50Hz/110v60hz, 1500W |
Other Related accessories
Product application company profile Certifications Our visits
