Irrigation Apparatus System of Long Distance Water Big Rain Gun Sprinkler Heads
Basic Info.
Model NO.
DL50PYC
Power Source
Electricity
Drainage & Irrigation Mode
Sprinkler Irrigation Equipment
Pump Type
Immersible Pump
Material
Metal
Ground Drainage and Irrigation Machinery Type
Pumping Irrigation
Certification
ISO9001:2008, CE
Condition
New
Application Field
Agriculture, Forestry
Warranty
1 Year
Nominal Diameter
50mm
Nozzle Diameter
14mm-30mm
Working Pressure
2-8bar
Flow Rate
15.5m3/H-101.1m3/H
Range
50-110m
Interface Mode
Flange Interface
Jet Elevation
20-45 Adjustable
Product Weight
10kg
Product Specification
88.5 * 20.5 * 32cm
Transport Package
Export Carton
Specification
88.5 * 20.5 * 32cm
Trademark
DELONG
Origin
Xuzhou, China
HS Code
8424200000
Production Capacity
One Hundred Thousand
Product Description

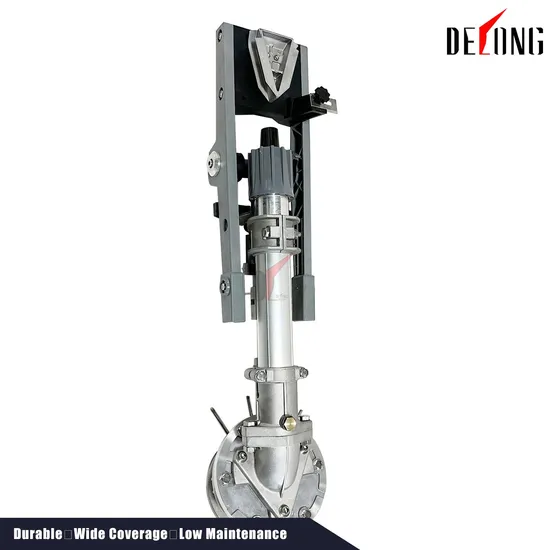

DL50PYC Vertical rocker arm (extended) irrigation spray gun adopts the form of double rocker arm, the vertical rocker arm is equipped with a bidirectional guide plate, through the water flow to the bidirectional guide plate in different directions, to achieve the positive and negative rotation, so as to achieve the positive and reverse can be normal spray continuous spraying mode. The nozzle has a long injection distance and can adjust the rotation angle of the nozzle 0°-360°, and completely automatically and smoothly rotate during the injection process without manual intervention. The rotation mechanism of the 50 PYC vertical swing arm irrigation spray gun is a unique plane bearing form, and the brake friction pair is used to control the rotation speed of the spray gun smoothly. In the process of no lubrication during the use, so that 50 PYC vertical rocker arm spray gun to meet the requirements of flexible rotation, greatly prolong the service life, and 50 PYC vertical rocker arm irrigation spray gun can also achieve its excellent spray atomization effect under low water pressure, thus greatly reducing the energy cost. The products are mainly used for agricultural irrigation, industrial and agricultural drainage, grassland irrigation, and landscaping.>> Acrylic Marker Set with Stamper for Students and Artists
